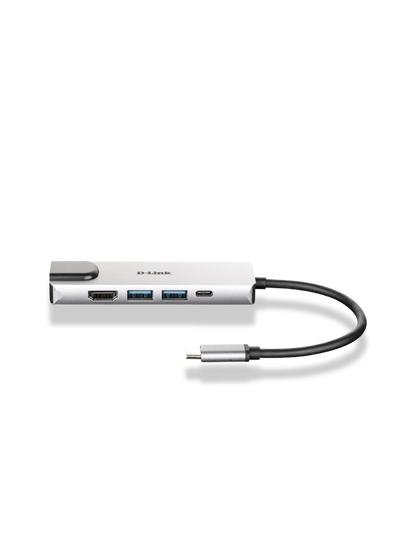

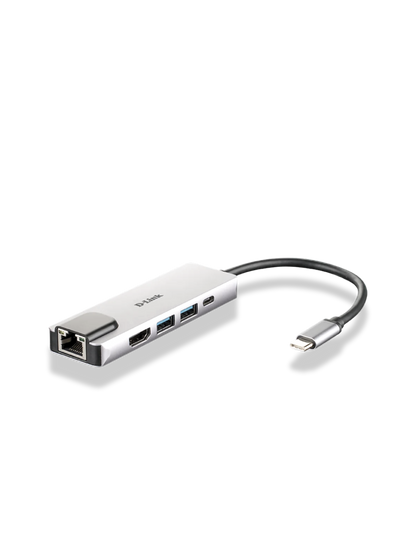

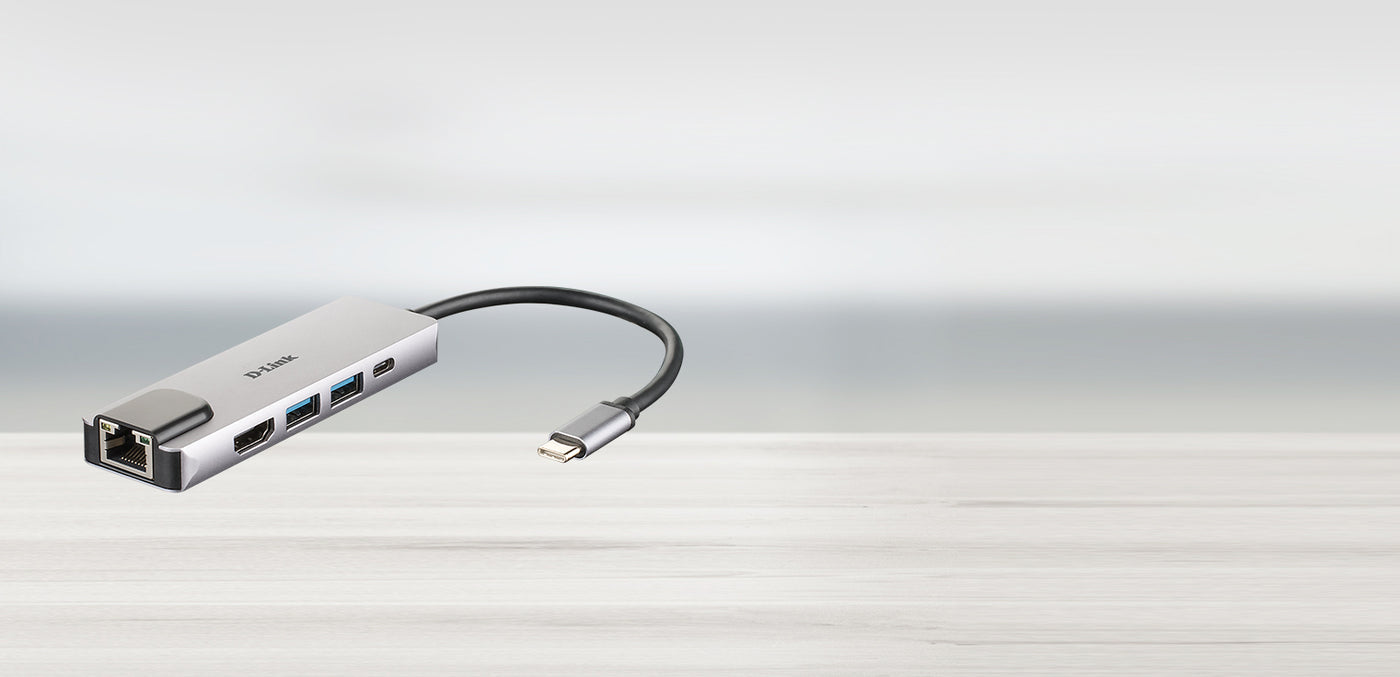

Just plug the DUB-M520 5-in-1 USB-C™ Hub into an available USB Type-C port and you’re ready to connect to a network with the reliability of a wired connection. You can also connect up to two more USB devices, as well as a second display.
Now you won’t have to put up with laggy wireless video streaming every time you present your visuals on a larger screen.
Easy to Use
The DUB-M520 5-in-1 USB-C™ Hub connects to your computer’s USB Type-C port and is ready to run as soon as it’s plugged in. The plug-and-play design ensures you never have to fiddle around with any configuration settings or install any additional software for your computer.
For extra convenience, the adapter’s compact design means that you can easily slip the DUB-M520 into your pocket or laptop bag and take it with you.
Fully-Featured HDMI Video Connectivity
The DUB-M520 5-in-1 USB-C™ Hub plugs into any available USB Type-C or Thunderbolt-3 port on your computer and enables you to connect to an HDMI display with a resolution of up to 4K Ultra HD at 30 frames per second.
Gigabit Ethernet Connectivity
The DUB-M520 5-in-1 USB-C™ Hub lets you connect to an Ethernet network at speeds up to 1 Gbps for up to ten times faster transfer speeds compared to previous standards. High-speed Gigabit Ethernet allows you to transfer large files in no time, or make light work of backups to a server or network storage device.
Where wireless connectivity is inconsistent or unavailable, this USB hub offers a seamless wired alternative.
Tech Specifications
Hardware
Device Interfaces
• RJ-45 Ethernet Port (10/100/1000 Mbps)
• USB Type-C Port
• Two USB 3.0 Type-A (female) Ports
• USB Type-C Connector (Thunderbolt 3 compliant)
• HDMI Port (3840 x 2160 or 4096 x 2160 pixels @ 30 Hz)
LEDs
• Speed (amber)
• Link/ACT (green)
Standards
• OHCI (Open Host Controller Interface)
• USB Specification Version 3.0
• EHCI (Enhanced Host Controller Interface)
• USB Specification Version 2.0
• USB Specification Version 1.1
• HDMI 1.4
• HDCP 2.2
• DisplayPort Alternate Mode
Wireless
Standards
• IEEE 802.3 Ethernet
• IEEE 802.3u Fast Ethernet
• IEEE 802.3ab Gigabit Ethernet
• IEEE 802.3x Full Duplex and Half Duplex
• IEEE 802.3az Wake-On-LAN Support
General
Minimum System Requirements
• Computer with Microsoft Windows® OS, Mac OS® , or Chrome OSTM.
• Available USB Type-C Port with DisplayPort Alternate Mode Supported
Power
• Input: Bus-powered
• Consumption: 120 mA, 5 V DC
Temperature
• Operating: 0 to 70 °C (32 to 158 °F)
• Storage: -25 to 85 °C (-13 to 185 °F)
Humidity
• Operating: 5% to 80% RH, non-condensing
• Storage: 5% to 80% RH, non-condensing
Certifications
• CE
• FCC
• IC
• RCM
Physical
Dimensions (W x H x D)
• 103 x 31 x 11 mm (4.06 x 1.22 x 0.43 in)
• Cable length: 17 cm (6.69 in)
Weight
• 49.0 g (1.73 oz)
