DLA-X303 | D-Lite Cloud-Managed AX3000 Outdoor Access Point
DLA-X303 | D-Lite Cloud-Managed AX3000 Outdoor Access Point

DLA-X303 | D-Lite Cloud-Managed AX3000 Outdoor Access Point

RM0.00
DLA-X303
  • Cloud Management
  • Zero-Touch Deployment
  • Intuitive Interface
  • Unlimited Scalability
  • Band Steering
  • Bandwidth Optimization
  • Auto Channel Management
  • Authentication via Customizable Captive Portal, 802.1x and RADIUS Server
  • Social Login for Guest Wi-Fi Access
  • End-to-End Encryption
  • Event Log and Change Log
  • Over-the-Air Firmware Upgrades
  • Real Time Trac Reporting & Analytics*
  • Automated Monitoring & Alerts
  • Multi-Tenant & Role-Based Administration
  • Map View
  • AI Diagnostics
  • IP67 water and dust-proof housing
  • Supports 500+ Concurrent Wi-Fi Client Device

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80
Downloads Datasheet

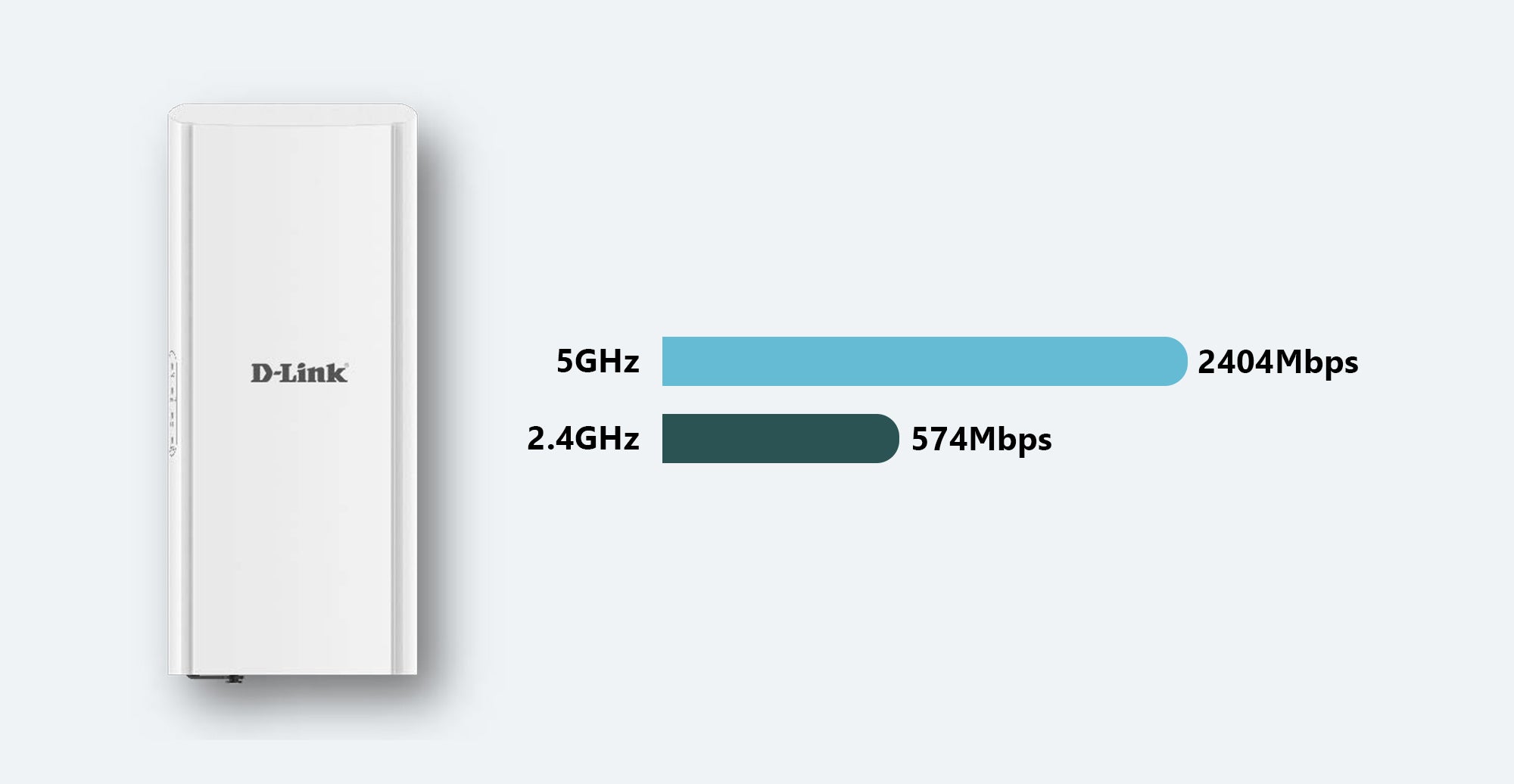

AX3000 speeds up to 3 Gbps

Enjoy high-speed Wi-Fi 6 performance with combined dual-band speeds of up to 3 Gbps. Designed for busy environments, it delivers fast, reliable connectivity for multiple devices with improved efficiency and lower latency.

Wi-Fi 6 (802.11ax) dual-band connectivity

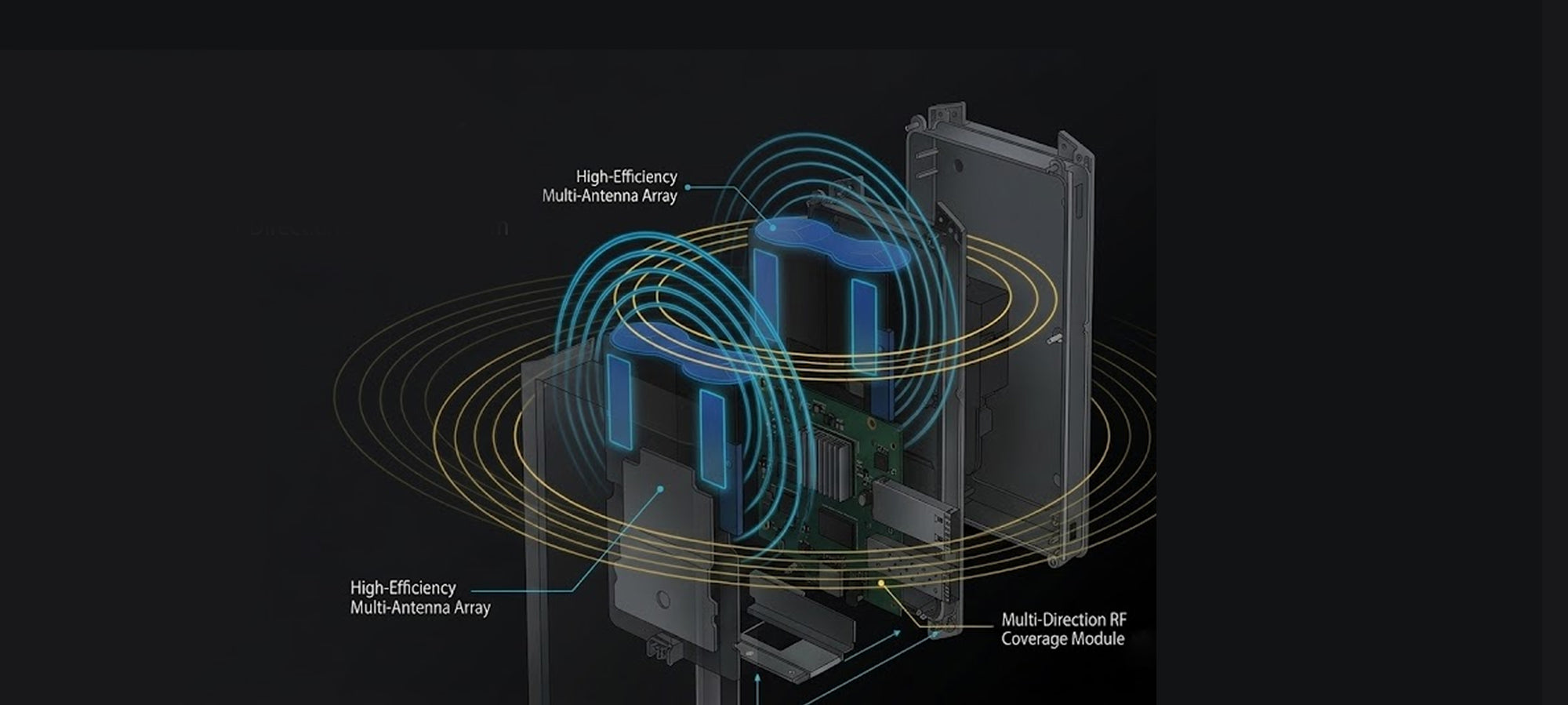

Experience the Peak of WiFi 6 with Smart Antennas

Featuring Advanced Internal Multi-Directon Antenna System

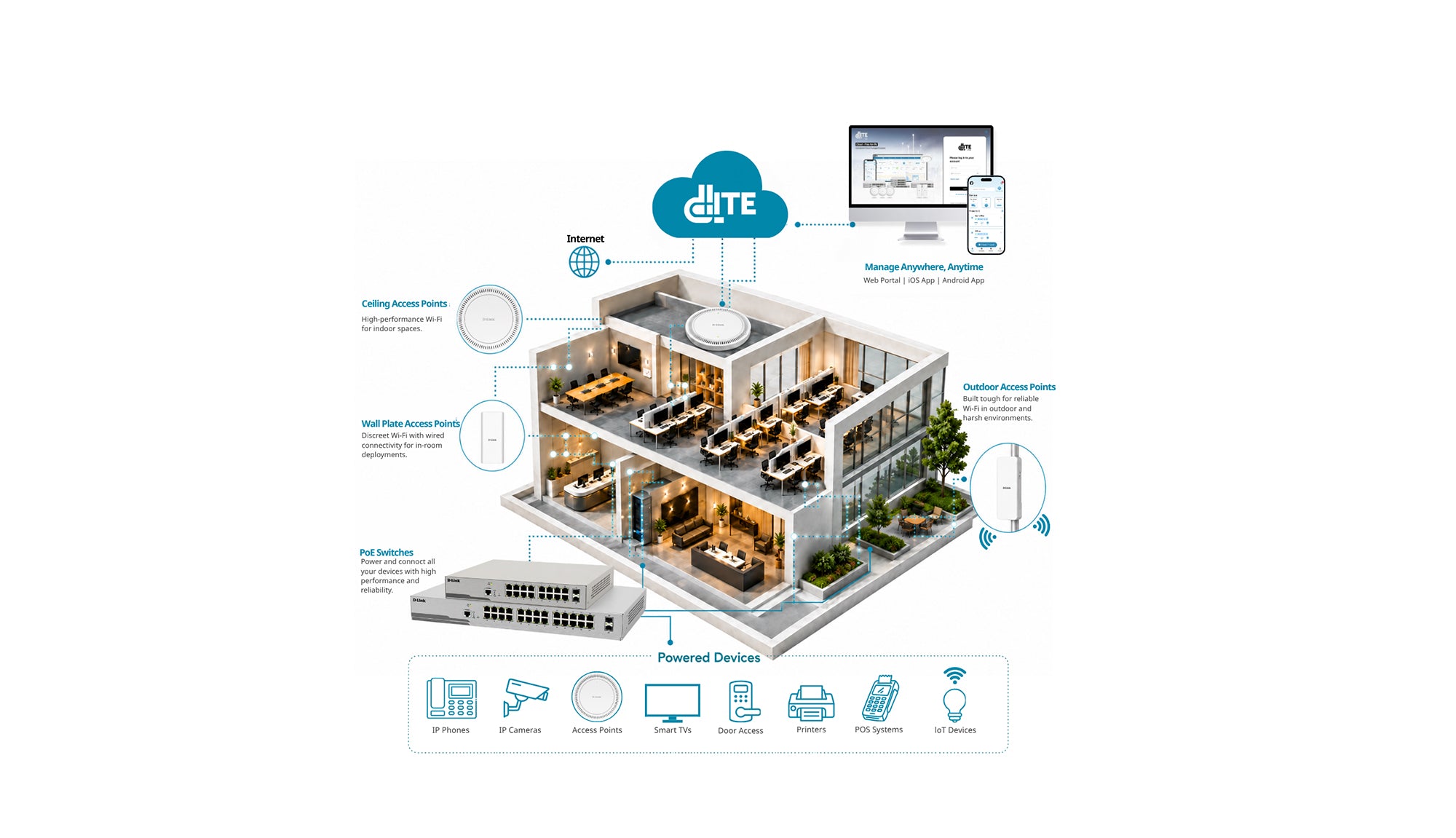

One Seamless Network

Everything Connects

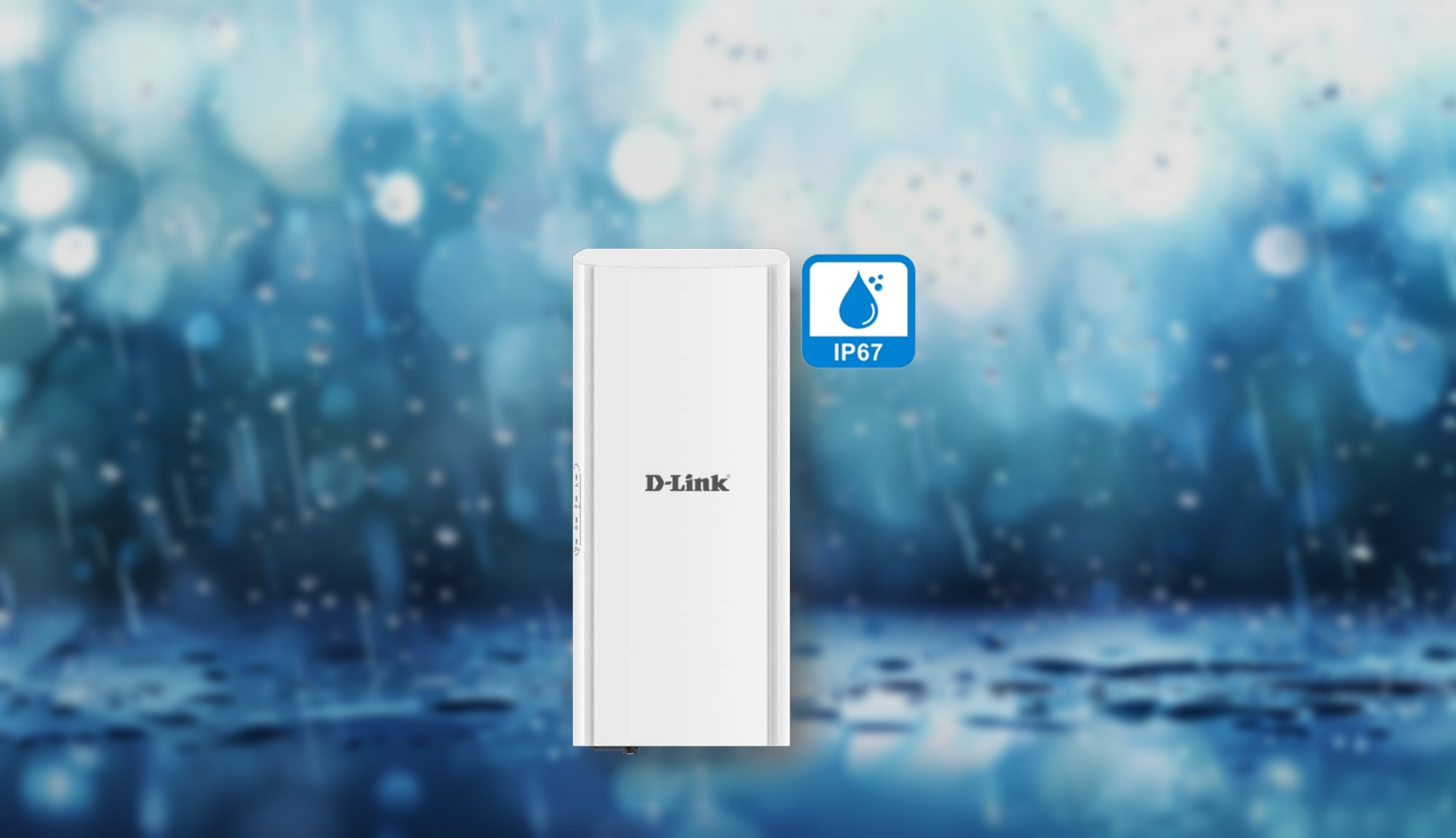

IP67 Weatherproof Enclosure for Outdoor Environments

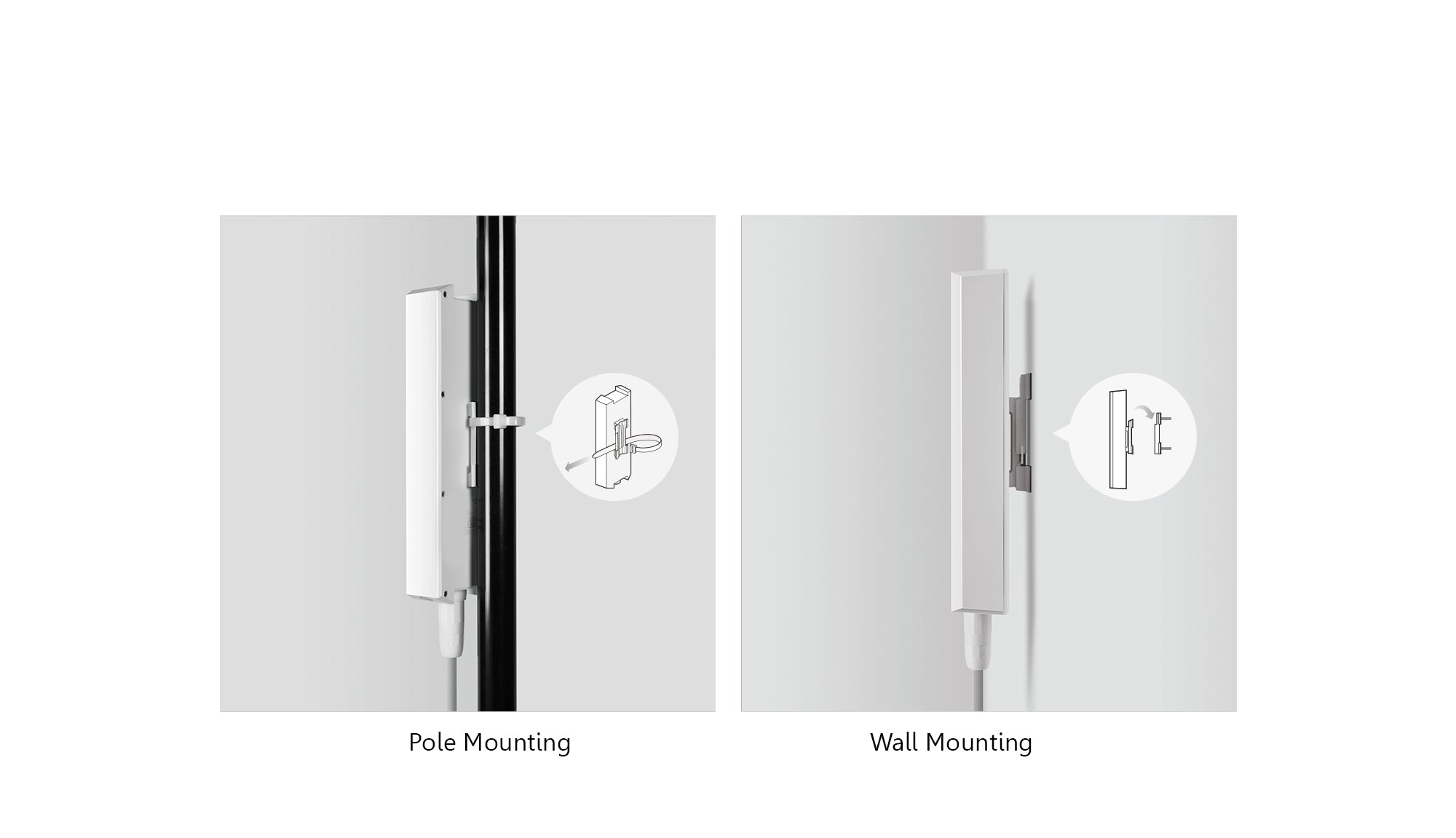

Flexible Mounting Options

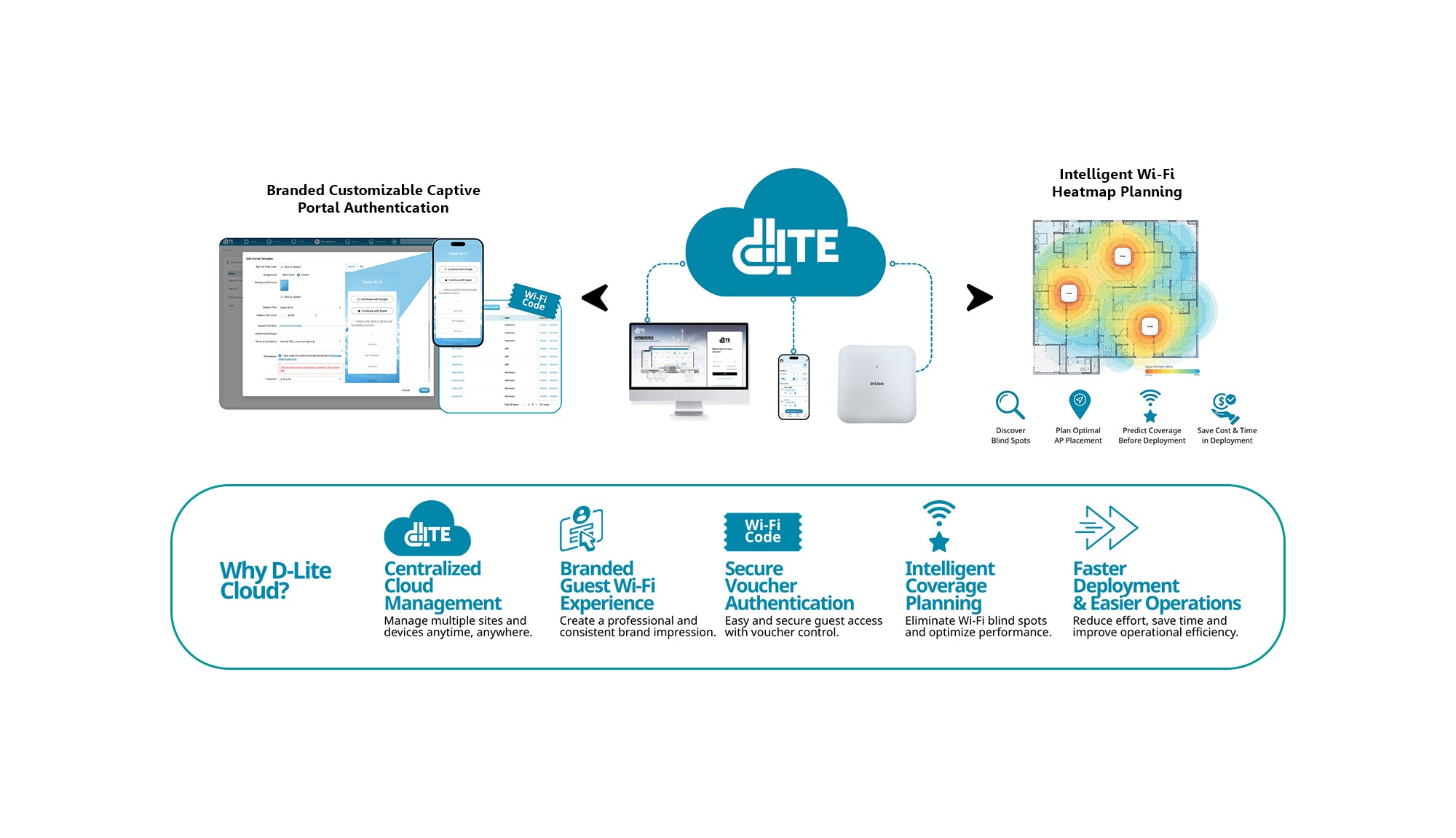

Captive Portal & Wi-Fi Heatmap

Smarter Guest Access & Intelligent Wi-Fi Planning

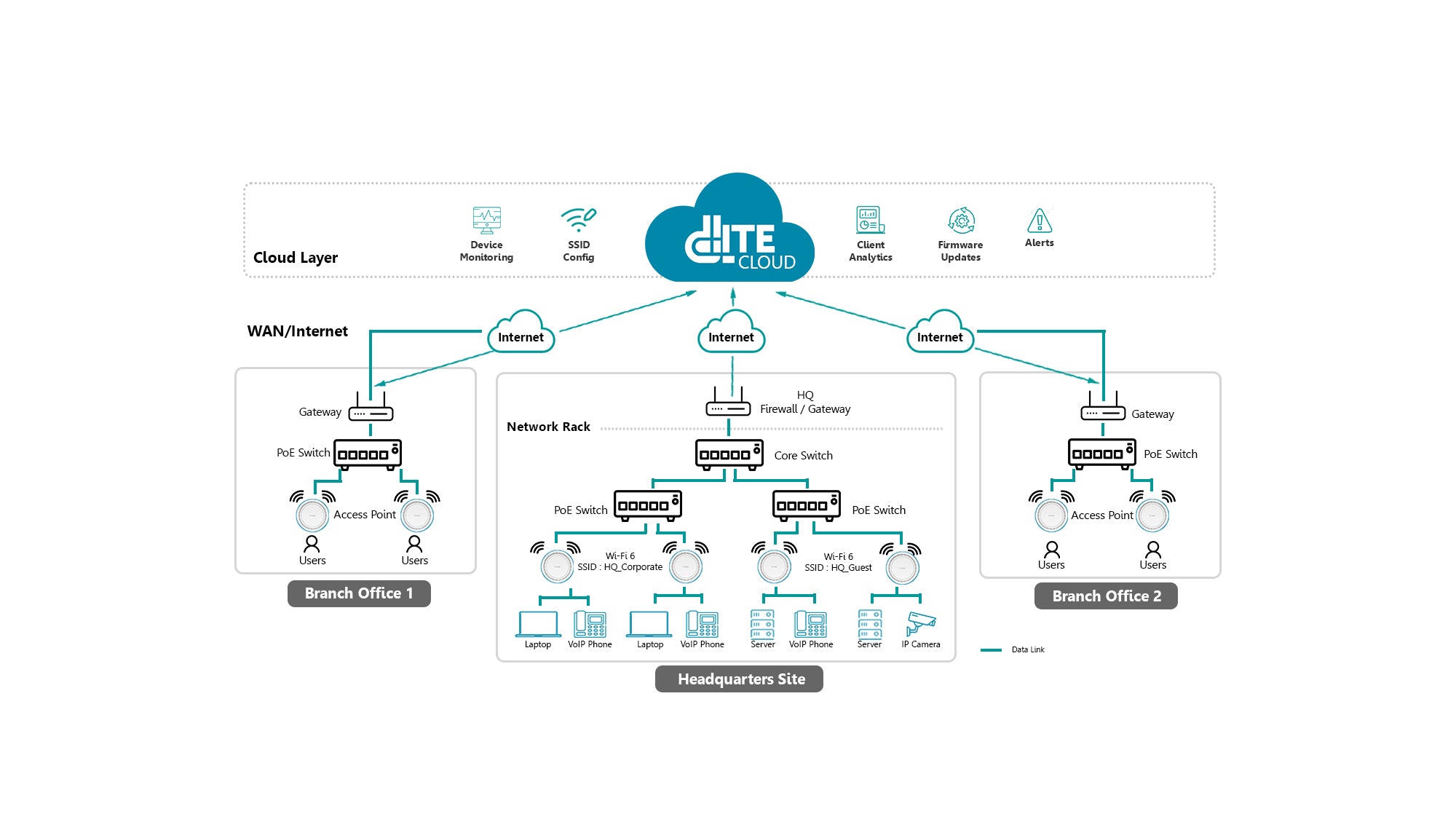

Cloud-Managed Wi-Fi & Switch Network Topology

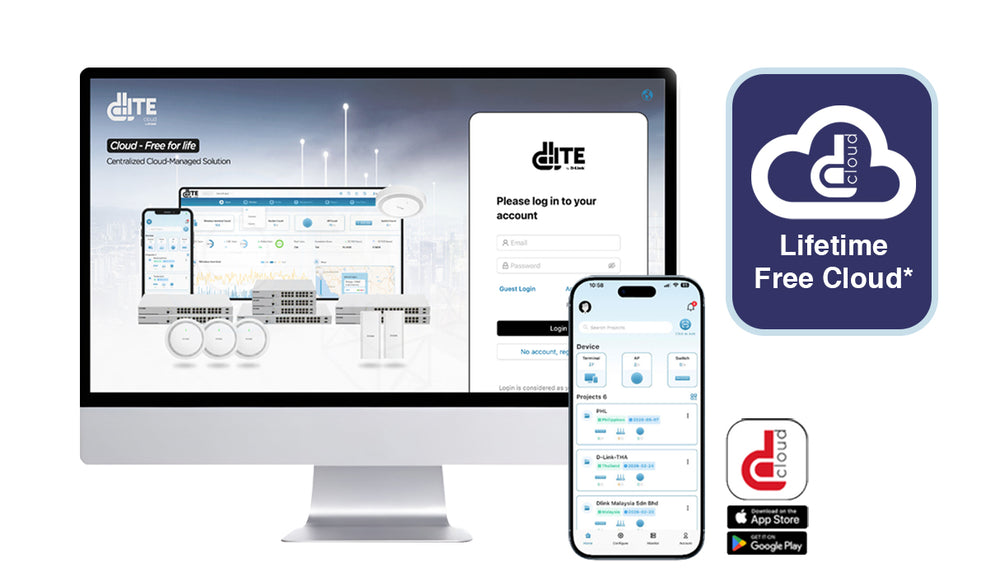

Cloud-based centralized management via D-Lite Cloud

With Zero-Touch Provisioning, devices can be shipped directly to each site and
automatically configured when connected。


*D-Link provides its cloud-managed Wi-Fi services on a complimentary basis. D-Link expressly reserves the right, at its sole discretion, to modify, amend, suspend,or terminate the terms and conditions, feature availability, or fee structure of this service at any time without prior notice. Your continued utilization of the servicefollowing any such alterations shall constitute your explicit acknowledgment and acceptance of the revised Terms and Conditions.

Tech Specifications

Hardware
Device Interfaces
  • 1 x RJ45 10M/100M/1000M WAN Ethernet(with PoE), 1 x RJ45 10M/100M/1000M LAN Ethernet
  • 1 x Reset Button,
  • 1 x Power Jack
CPU frequency
  • Quad-Core 1GHz
Memory
  • DDR3L 512Mbyte
Flash

• 128MB Nand Flash

Power Supply

• PoE or 12V/1A DC

Wireless
Wireless
Antenna
  • 2 x 5dBi internal 2.4GHz antennas, 2 x 7dBi internal 5.8GHz antennas
Wi-Fi
  • 2T2R 2.4GHz 802.11b/g/n/ac/ax, 573.5Mbps, 2T2R 5.8GHz 802.11a/n/ac/ax, 2402Mbps
Modulation Schemes
  • OFDM - BPSK,QPSK, 16-QAM, 64-QAM 256-QAM 1024-QAM
    DSSS - DBPSK, DQPSK, CCK
Max Transmit Power 2.4GHz:
  • 2.4GHz:
    11n max 29dbm (26dbm per chain)
    11ac max 29dbm (26dbm per chain)
    11ax max 29dbm (26dbm per chain)
  • 5GHz:
    11n max 29dbm (26dbm per chain)
    11ac max 29dbm (26dbm per chain)
    11ax max 29dbm (26dbm per chain)
RX Sensitivity
  • 2.4GHz:
    11n max - 71dbm
    11ac max - 63dbm
    11ax max - 59dbm
  • 5GHz:
    11n max - 71dbm
    11ac max - 61dbm
    11ax max - 56dbm(HE80)
    11ax max - 53dbm(HE160)
Transfer Rate
  • 2.4GHz:
    HE20: up to 286.8Mbps
    HE40: up to 576.5Mbps
  • 5GHz:
    HE20: up to 286.8Mbps
    HE40: up to 576.5Mbps
    HE80: up to 1201Mbps
    HE160: up to 2402Mbps






General
Security Protocols
  • WEB GUI
  • Command Tool Telnet For Debug
  • APP
  • SSH
  • HTTP/HTTPS
  • Login Authentication
  • NTP
  • Settings Backup & Import & Recovery
  • Firmware Local/Remote Upgrade
  • System Reboot & Scheduled-Restart
  • Network Self-Checking
  • Fault Alarm
  • Fault Collection
  • Diagnostic Tools
    (ping/tracert/nslookup)

Physical
SDimension

• 235.5 x 100.7 x 70mm

Weight

• 530g

Operating Temperature

• -30°C~60°C

Storage Temperature

• -30°C ~ 70°C

Humidity

• 5%~95% (typical)

Mean Time Between Failure (MTBF)

• >250000 hours

Mounting Options

• Wall/Pole Mount

IP Rating

• Rating Min IP67

Certications

• CE
• UL
• RoHS
