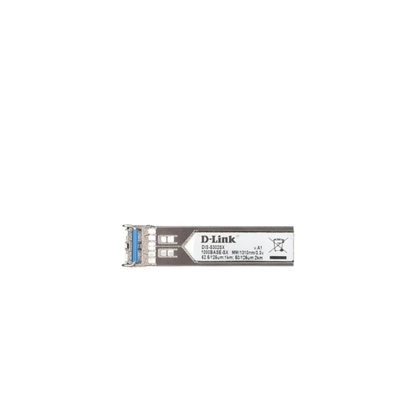

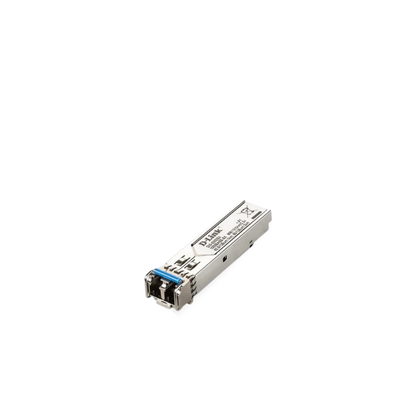

1‑port Mini‑GBIC SFP to 1000BaseSX Multi‑Mode 2km Fibre Transceiver
1‑port Mini‑GBIC SFP to 1000BaseSX Multi‑Mode 2km Fibre Transceiver

1‑port Mini‑GBIC SFP to 1000BaseSX Multi‑Mode 2km Fibre Transceiver

• 1 port port Mini
• GBIC SFP hingga 1000BaseSX Multi ‑ Mode 2 km Transceiver Serat
• DIS ‑ S302SX
• Product Status (Revised A): Direct
• 1-port Mini-GBIC SFP to 1000BaseSX Multi-Mode Fiber Transceiver
• up to 2 km
• -40 ~ 85 ° C operating temperature

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80
Downloads Datasheets M2M Solution Guide

Tech Specifications

General
The Features
  • Hot Pluggable
  • According to the MSA
  • RoHS compliant
  • Standard
Eligible Standards
  • IEEE802.3z
  • 1000BASE-SX
 Transceiver Type
  • SFP
Media Fiber Support
  • Multi-Mode
Distance
  • Max Other distance or type of cable supported
  • Fiber 62.5 / 125um: 1km
  • Fiber 50 / 125um: 2km
  • 62.5 / 125um OM1 1 km
  • 50 / 125um OM2 1 km
  • 50 / 125um OM3 2km
  • 50 / 125um OM4 2km
Speed
  • 1.25Gbps
Connector
  • LC Duplex Connector
Direction
  • One Way
Wavelength
  • 1310 nm
Optical Power Output (TX Optical Power)
  • Maks. (dBm) -3dBm
  • Min. (dBm) -9dBm
Optical Power Input (RX Optical Power)
  • Maks. (dBm) -3dBm
  • Min. (dBm) -22dBm
Sensitivity (dBm)
  • 22dBm
Cable Type
  • Multi-mode fiber 50 / 125um or 62.5 / 125um
Strength (v)
  • 3.3V
Max Input Current (mA)
  • 300mA
Power Budget (MIN Power Budget) (dB)
  • 13dB
MAX Power Budget (dB)
  • 19dB
Heat generated (kJ / hour)
  • 2.376 kJ / jam
MTBF (hour)
  • 224.167 jam
Certification Emissions (EMI)
  • FCC Kelas B
  • Kelas CE B
  • VCCI Kelas B
Security
  • LVD
  • EN 60825-1
Physical

Operating Temperature (° C)
  • 40-85 ° C
Storage Temperature (° C)
  • 40-85 ° C
Operating Humidity (%)
  • 5% ~ 95%
Storage Moisture (%)
  • 5% ~ 95%
Dimension (W x D x H)
  • 13.7mm x 55.4mm x 8.5mm
Weight
  • 20g
Hook Color
  • Biru
