• 5 x Fast Ethernet ports for efficient performance • Dual power inputs provide power redundancy • Wide voltage compatible with various power sources • -40°C to 75°C operation for harsh environments • 6kV surge protection on Fast Ethernet ports • DIN-rail offers efficient and flexible installation • Fanless design reduces maintenance needs • IP40 housing protects against small objects • Plug-and-play with no configuration required • Support 802.3az Energy-Efficient Ethernet (EEE)
Simply plug in and go with no configuration required, making setup effortless

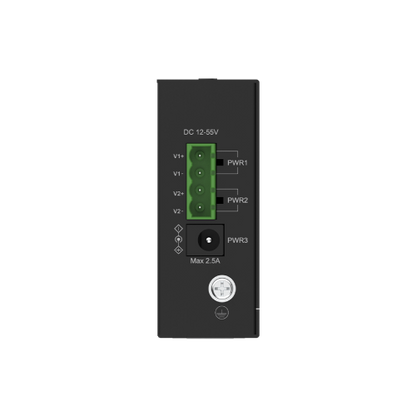

Dual Power Input
Dual power supply redundancy minimizes downtime and boosts system reliability
6kV Surge Protection
6kV Surge Protection keeps all Ethernet ports unharmed from the surge
Industrial-Grade Durability
Corrosion-resistant steel casing and hardened components ensure reliable operation in harsh environments
Fanless
Fanless design reduces the risk of component failure impacting MTBF, reducing maintenance and downtime costs
Green Ethernet
Energy Efficient Ethernet (EEE) reduces power consumption, helps save cost, especially in always-on environments
Wide Voltage
Redundancy Power Supply

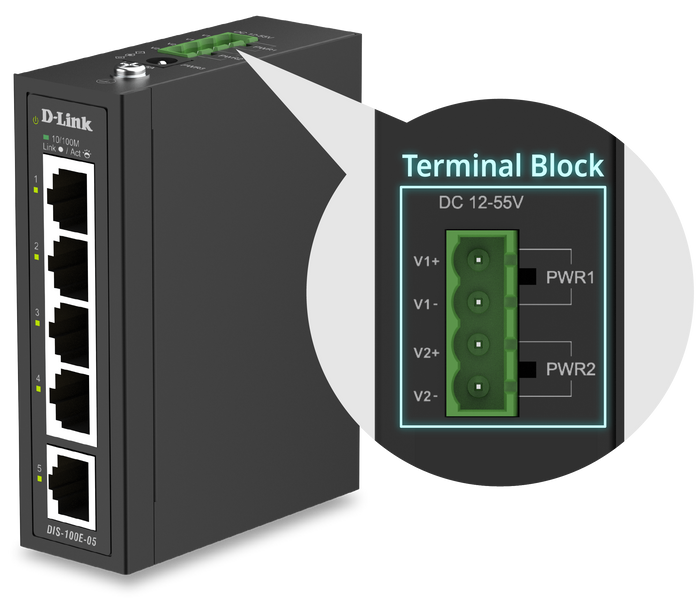

Uninterrupted Power Redundancy
The DIS-100E-05 is equipped with dual power supply options. Each is capable of independently powering the device. This built-in redundancy ensures continuous operation even if one power source fails, minimizing shutdown risk and maintaining network performance. As industrial environments are common with unstable power conditions, its wide voltage range of 12 – 55V DC supports diverse power sources while protecting against surges and low voltage, delivering a stable and dependable power supply.

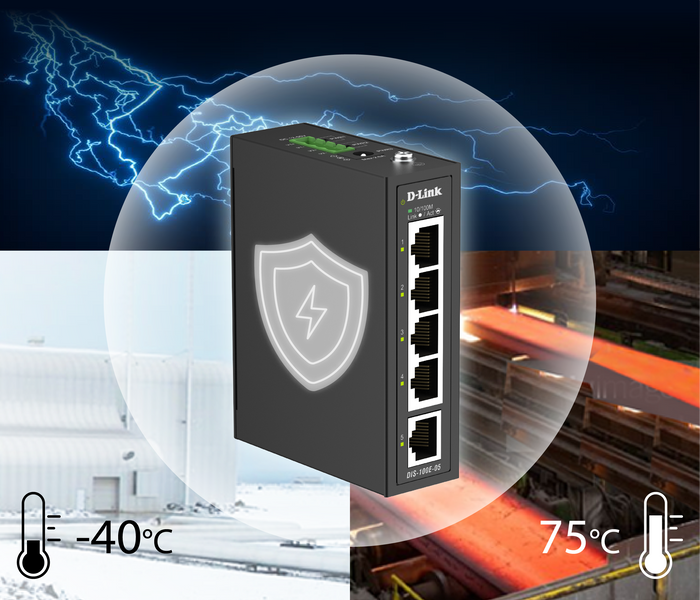

Built Tough for Demanding Conditions
The DIS-100E-05 is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the 6kV surge protection on all Ethernet ports helps reduce the risk of downtime and enhances long-term reliability.

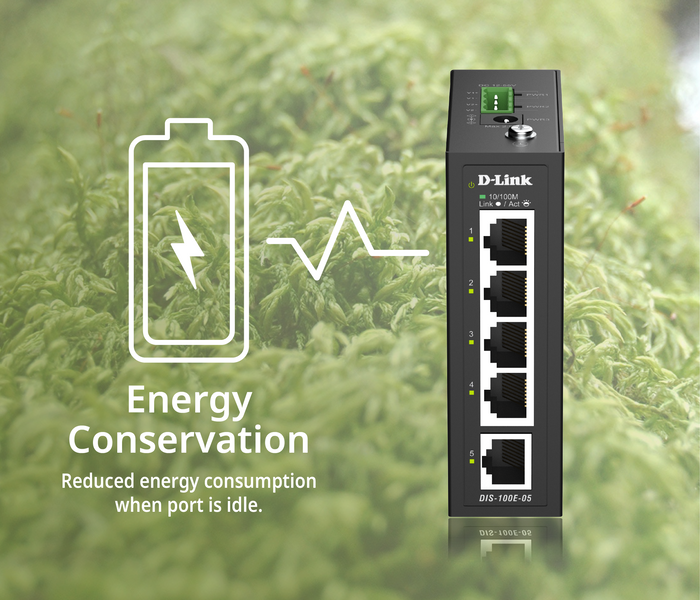

Save Power, Stay Reliable
Engineered for energy efficiency, the DIS-100E-05 features a fanless design and supports Energy-Efficient Ethernet (EEE), enhancing overall reliability. The fanless design ensures silent operation, reduces potential points of failure to cuts down on maintenance. EEE further lowers power consumption during periods of low network activity, helping reduce long-term energy costs. Together, these features make the DIS-100E-05 a dependable, low-maintenance solution for continuous industrial use.

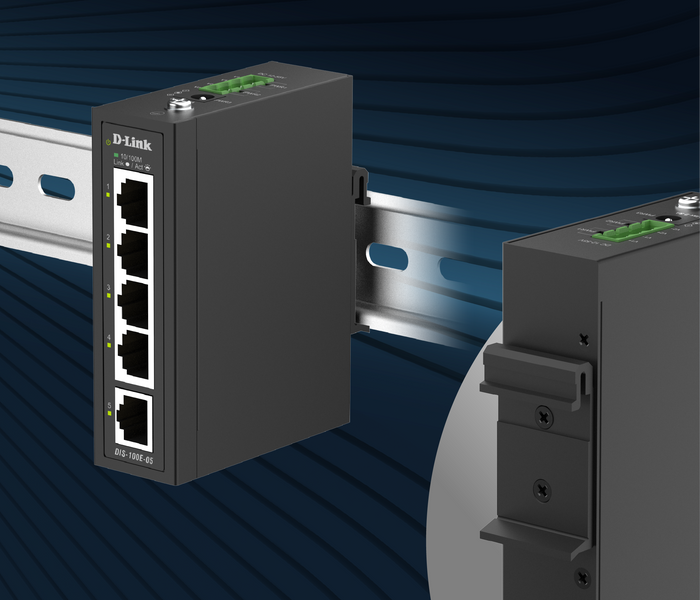

Efficient and Flexible Deployment
The DIS-100E-05 offers true plug-and-play simplicity, just connect the cables and power it up, with no configuration required. It’s an effortless way to quickly and efficiently set up a network, making it ideal for a wide range of field applications. Its compact size and supports DIN-rail mounting, saving space and allowing for easy, organized installation within industrial control cabinets, fit seamlessly into any industrial equipment infrastructure.

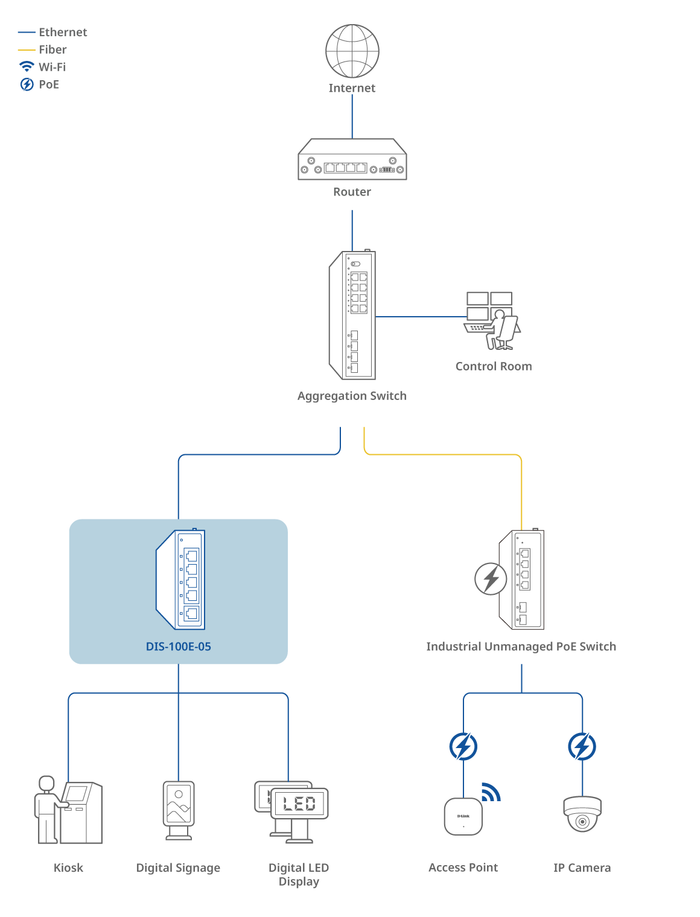

Connection Diagram

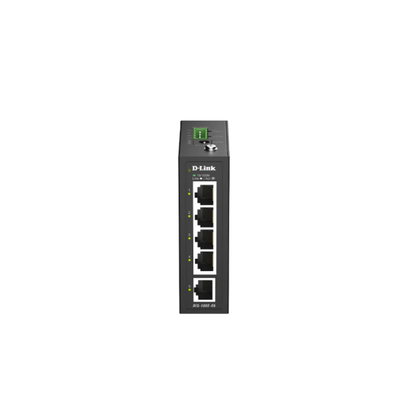

The DIS-100E-05 is an industrial unmanaged switch equipped with five Fast Ethernet ports, providing cost-effective plug-and-play connectivity. With reliable, high-performance operation, it ensures real-time data transfer and seamless connectivity for applications such as Kiosk, digital signage, LED displays, and more.
Overcurrent Protection
Anti-Reverse Protection
Firm Connection
Tech Specifications
Hardware
Type of Downlink Ports
100M
Number of 10 / 100 Mbps ports
5
Wireless
Switch Capacity
1 Gbps
MAC Address
Up to 1K
General
Fanless
802.3az EEE
Power Supply Type
DC:12~55V Dual input
Installation
DIN-Rail
Jumbo Frame
1.5K
Ingress Protection
IP40
Surge Protection
6kV
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
Physical
Dimensions
100 x 76.5 x 30 mm
Operating Temperature
-40°-75°C
