250M 18-Port Unmanaged Gigabit Switch with 16 PoE Ports (150W) and 2 SFP Uplink Ports

250M 18-Port Unmanaged Gigabit Switch with 16 PoE Ports (150W) and 2 SFP Uplink Ports

RM0.00
DGS-F1018P-E
  • • 10/100/1000 Mbps Ethernet ports
  • • 2 SFP Uplink
  • • 150 W PoE budget
  • • Support IEEE802.3af/at up to 30W per port to PoE compatible devices
  • • Support transmission Data/PoE up to 250m cable length (Port 1-8 with Extend enabled)
  • • 6KV Lightning protection
  • • Smart Features: Extend, VLAN, QoS and PoE
  • • Plug & Play

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80
Downloads Datasheet

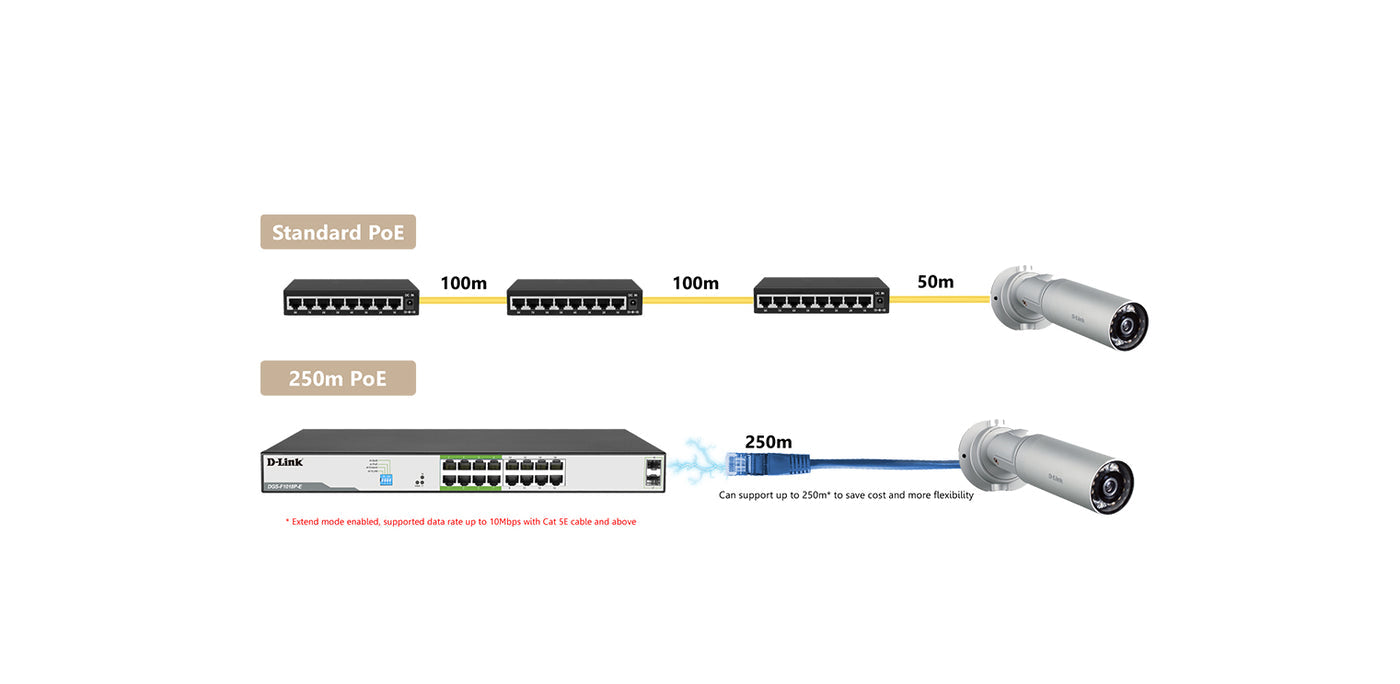

Up to 250m PoE and Data Transmission

Equipped with PoE extend technology, DGS-F1018P-E have the capability to supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long distance solution

6KV Surge Protection

D-Link 250M is enhanced with 6KV surge protection Effectively guard equipment from lighting damage especially if use on AP/IP camera install outdoor or at higher position

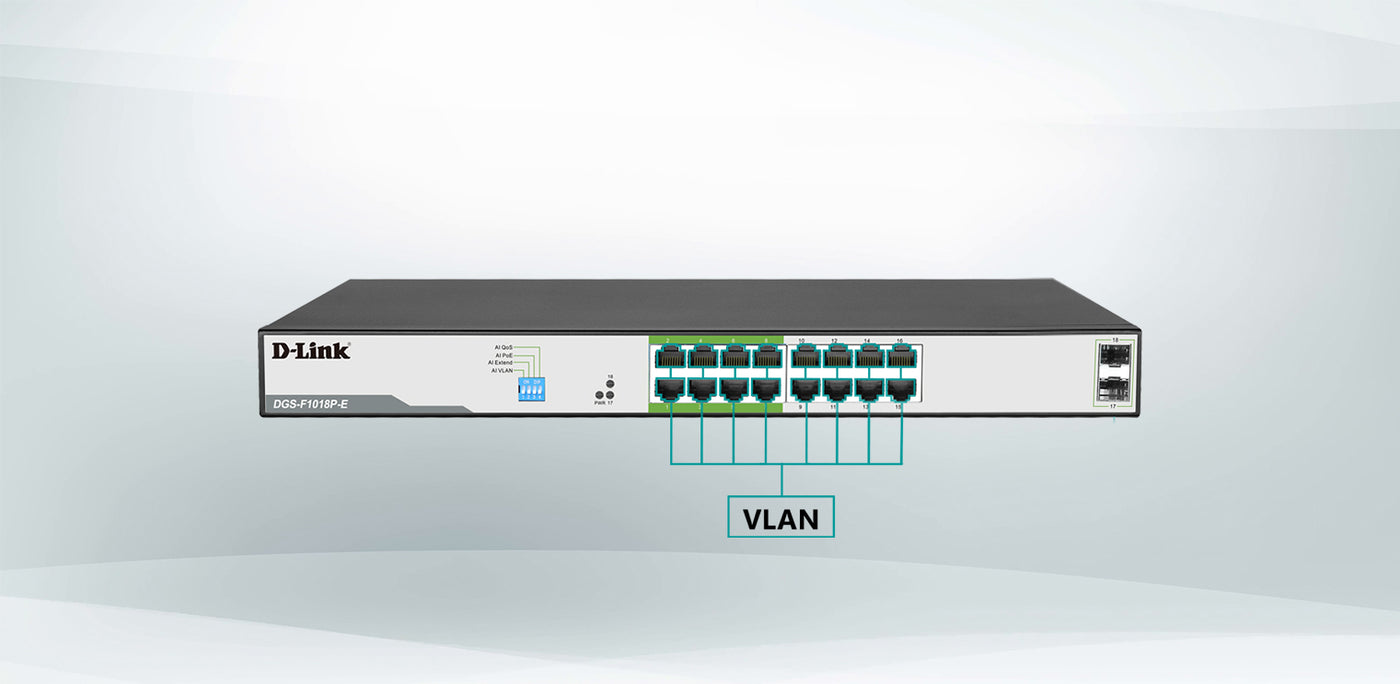

Enhanced with VLAN Function

With a flick of button, Isolate the downlink port to each other can effectively suppress network storms and improve network performance

Enhanced with Video QoS

Improve the Video Packet Priority

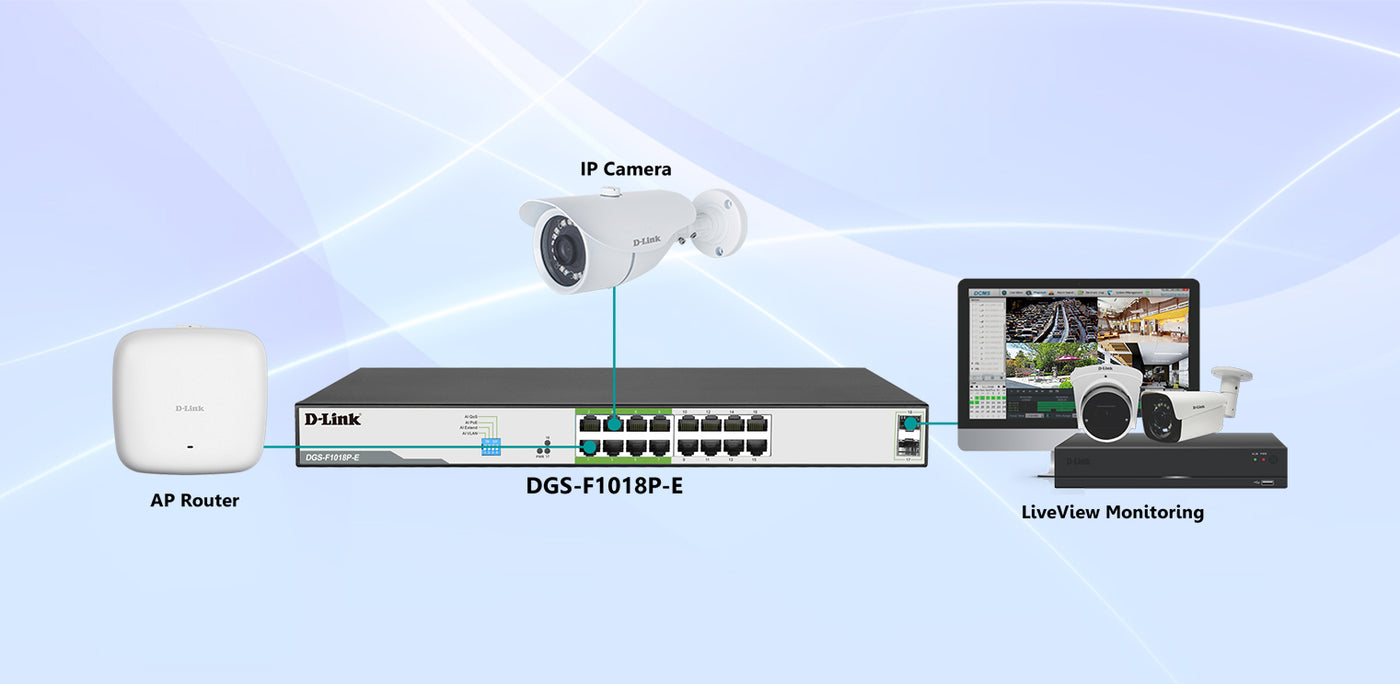

Create high priority for video streaming, perfect solution for IP camera/CCTV

Tech Specifications

Hardware
Interfaces

•16 10/100/1000 BASE-T ports
•2 SFP

PoE-Capable Ports

•Port 1 - 16 (Port 1 - 8 PoE can support up to 250m @ 10Mbps with Extend enabled)

Power

•✓

•150W

Link/Activity

•✓

Wireless
Wireless
Standards

•IEEE 802.3ab,Gigabit Ethernet standards
•IEEE 802.3u,Fast Ethernet standard；
•IEEE 802.3ab,Gigabit Ethernet standards
•IEEE 802.3x,Full-duplex Ethernet data link layers；
•IEEE 802.3af/at ,Ethernet power supply POE standard;

•IEEE 802.3az ,EEE,Energy efficient Ethernet standard;

•IEEE 802.3z,Gigabit Ethernet fiber-optic standard;

Data Transfer Rates

•Gigabit Ethernet
•1000 Mbps

•Ethernet
•100 Mbps

PoE Standards

•IEEE 802.3af

•IEEE 802.3at

General

OSI Layer

•Layer 2

Media Interface Exchange

•Auto MDI/MDI-X adjustment on all ports

Lighting Protection

•6KV

Switching Fabric

•36 Gbps

Mac address

•8K

Transmission Method

•Adopt Store-and-forward

Packet Filtering / Forwarding Rates

•10M port maximum 14800pps

•100M port maximum 148800pps
•1000M port maximum 1488000pps

Power Budget

•150W (30 W max. per PoE port)

Temperature

•Operating: 0 to 40 ˚C (32 to 104 ˚F)

Humidity

•Operating: 0% to 95% RH non-condensing

•Storage: 0% to 95% RH non-condensing

Safety

•LVD

EMI/EMC

•CE
•FCC

Physical
Size

•Desktop (with Mounting Kit)

Weight

•3kg

Dimensions

•440 x 180 x 44 mm
