• 24 x 10/100/1000BASE-T ports • 4 x 10G SFP+ ports for choosing the most suitable media type for your requirement • Lite L3 Static Routing for increased network efficiency • Advanced security features such as Access Control List, IMPB, 802.1X Authentication to enhance network security and protect the internet IT network • Dual Image & Configuration for reduced downtime • Supports STP/RSTP/MSTP to maintain the quality of network • Full CLI for easy management • QoS Enablement for performance improvement of critical network traffic • 11 Web Languages for management flexibility

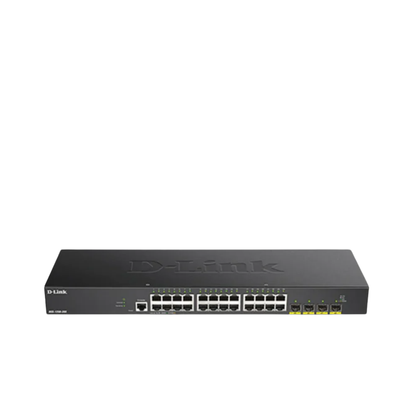

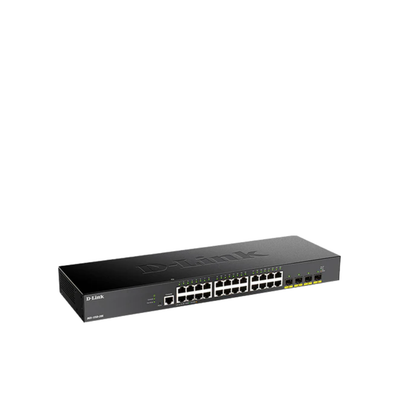

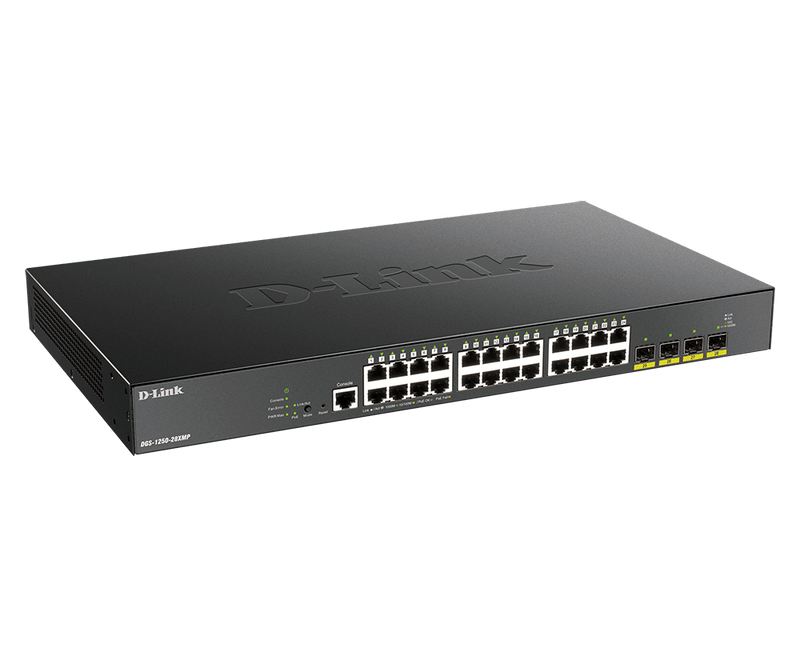

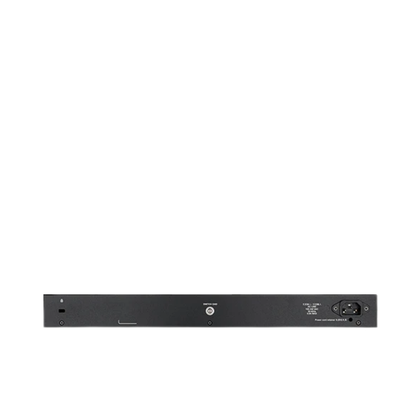

The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.
The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers – enabling real network horsepower at a value price.
Easy Maintenance, Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.
Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.
Extensive Management and Advanced Features
The DGS-1250 Series comes with IGMP snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The series also supports advanced features such as Static Routing, which allows for communication between different user groups in different VLAN segments in a network.
Management Versatility

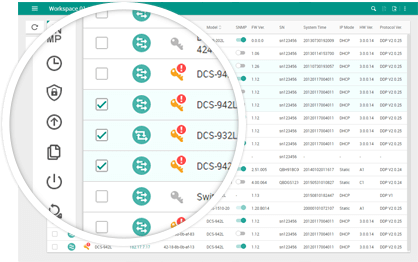

The DGS-1250 Series comes with the D-Link Network Assistant (DNA) utility so admins can remotely control their network to the port level. DNA allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.
Tech Specifications
Hardware
FAN
Yes
Console Port
Yes
RJ-45 Management Port
No
Alarm Port
No
CompactFlash (CF) Card Slot
No
Secure Digital (SD) Card Slot
No
USB Port
No
Number of Module Slots
No
10G SFP + ports
4
Wireless
1000Base-T Interface
24
10G SFP+ Interface
4
General
Power Input
100-240 VAC
CPU Speed
800MHz
DRAM Size
DDR3 2G
Flash Memory Size
64MB
Packet Buffer Size
12MBits
FAN
Yes
Physical Stacking
No
Auto MDI/MDIX
Yes
10/100/1000 BASE-T
24
Switch Capacity
128 Gbps
Max. Packet Forwarding Rate
95.24 Mpps
Maximum Heat Dissipation
104.346 BTU/hr (100 V)
100.936 BTU/hr (240 V)
Maximum Power Consumption
30.6 W/100 V
29.6 W/240 V
MTBF
743,482.45 hours
Physical
Dimension
440mm x 140 mm x 44mm
Weight
1.75 kg
Operation Temperature
-5 - 50°C
Storage Temperature
-20-70°C
Operation Humidity
0% - 95% RH
Storage Humidity
0% ~ 95% RH
Operating Altitude
1500 meters
