Route Layer 3 traffic between switches, even if they're segmented in VLANs.
Fibre Uplink Ports
Connect to other areas of your network at fibre-optic Gigabit speeds, and reach even further distances.
Surveillance Mode Interface
D-Link’s exclusive, easy-to-use Surveillance Mode interface gives you a snapshot of your security topology in an instant.
PoE Capable
Up to 370 W PoE output per switch
VLANs
Segment your network into VLANs.
Dual Image
Risk-free configuration testing.

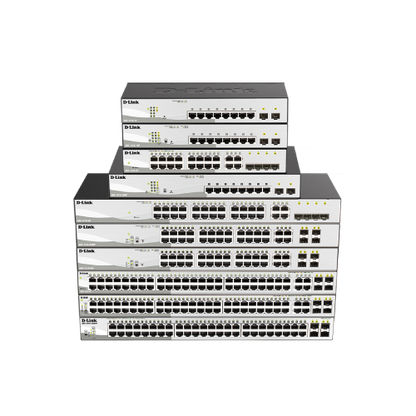

Smart Managed with a Plus

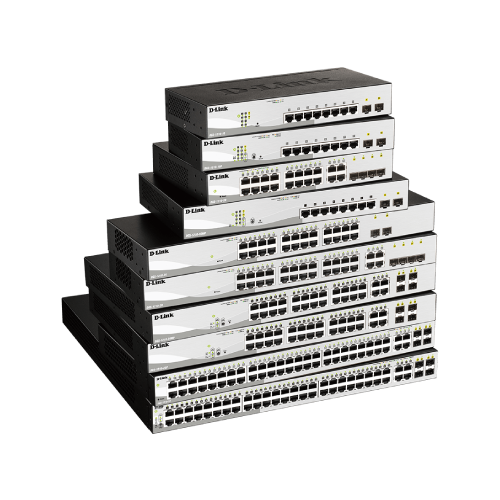

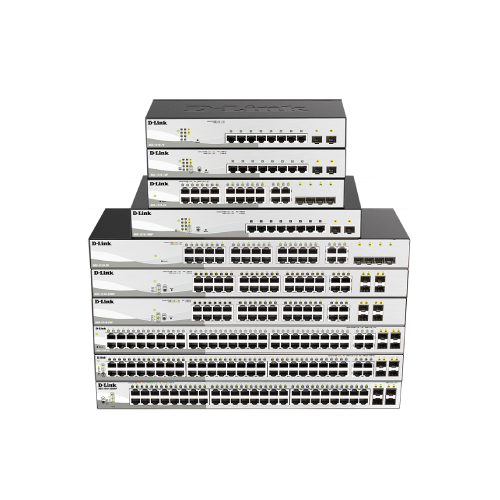

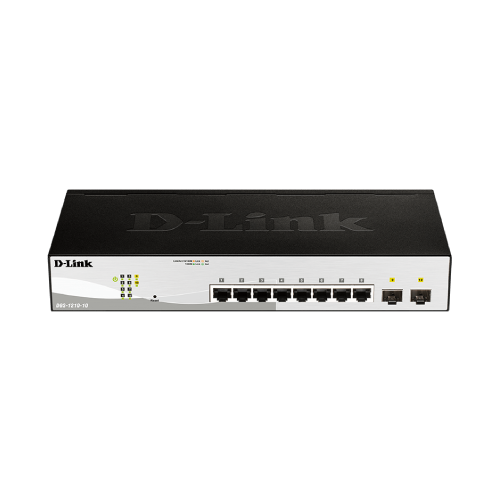

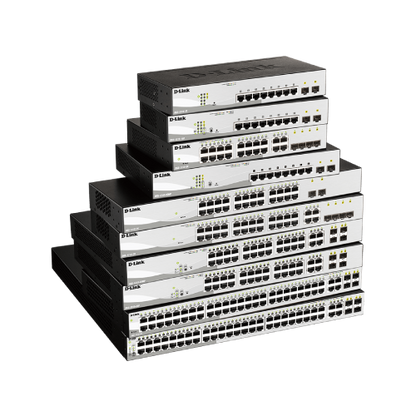

With increased PoE output, advanced Layer 2 management features, and Layer 3 static routing , D-Link’s DGS-1210 Smart+ Managed Gigabit Switches provide a cost-efficient and flexible solution for expanding any business network.

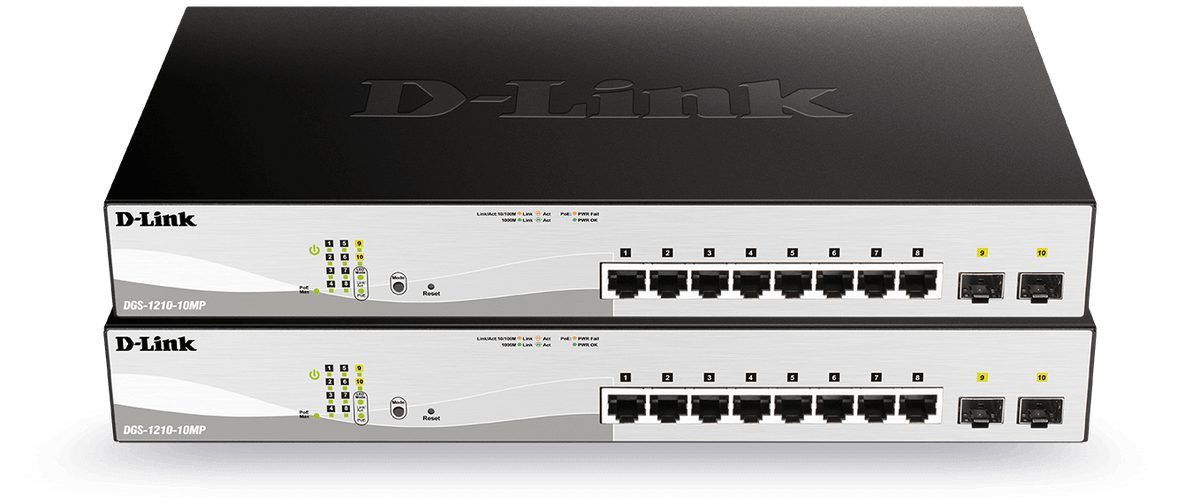

Fibre Uplinks
Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy-efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.

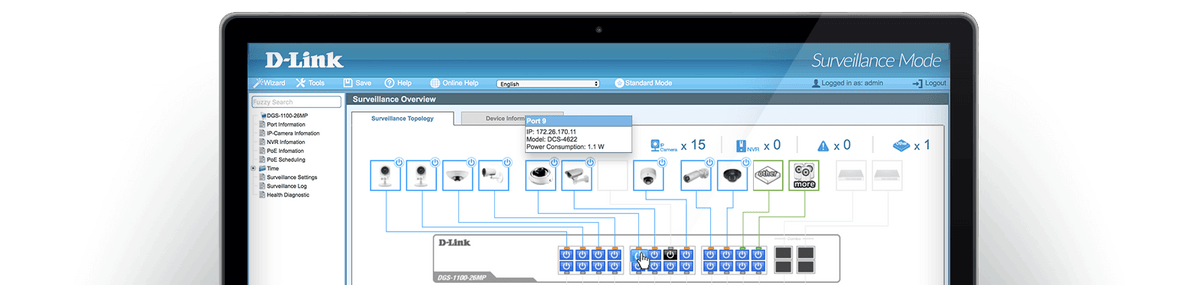

Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy-to-use surveillance features which enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.
Advanced Layer 2 Management with Layer 3 Static Routing
The DGS-1210 Smart+ family has advanced network management options, accessible via Compact CLI or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, dual software images, and dual configuration files.
With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ family is a versatile solution for access-edge network environments.
PoE and PoE+, with budgets up to 370W
The DGS-1210 Smart+ Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.

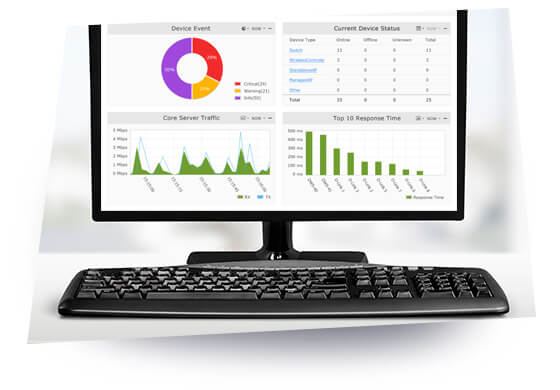

Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.
This product is compatible with Nuclias Connect*
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.
*An upgrade to the latest product firmware is required.
D-Link Green technology enables the DGS-1210 Smart+ series to save power without any sacrifices. The majority of the family utilises a fanless design, otherwise they feature a smart fan that powers on above a certain temperature. All come with advanced silicon technology which saves up to 73% of energy compared to a normal switch.
Tech Specifications
Hardware
Layer
Layer 2
Main type of ports
1000BASE-T Gigabit Ethernet
Number of ports
5 to 14 ports
16 to 30 ports
48 to 54 ports
Type of uplink ports
SFP
Combo 1000BASE-T/SFP
Number of PoE ports
8
24
Form factor
Desktop
Rackmountable
Wireless
Switching capacity
20 Gbps
40 Gbps
104 Gbps
PoE options
802.3at
802.3af
PoE power budget
See datasheet
See datasheet
D-Link Green
802.3az Energy-Efficient Ethernet support
MAC address
8K
16K
Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP
Link aggregation
802.3ad
VLAN group (max static)
256
Advanced VLAN
Asymmetric VLAN
Auto Voice VLAN
Auto Surveillance VLAN
Number of QoS queues per port
8
CoS based on contents
Bandwidth control
16 Kbps minimum granularity
ACL type
Ingress
ACL based on packet contents
Encryption protocol supported
SSL (v1/v2/v3)
IP-MAC-port binding (IMPB) / Smart Binding
ARP spoofing
802.1X access control
SNMP (v1/v2c/v3)
LLDP-MED
ICMPv6
General
Type
Smart managed
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
