• 1 x 2.5G WAN port delivers high-speed connections • Up to 7 x 2.5G LAN ports to connect multiple devices • 1 x 2.5G SFP port supports long-distance connections • Multi-WAN enables steady and balancing connectivity • Advanced firewall protect the network against threats • Complete network functionality fits diverse setups • Manage up to 15 D-Link Smart Access Point series • Bandwidth management optimizes service priority • Easy Web GUI for central monitoring and management • Made In Taiwan
Enjoy faster 2.5Gbps data transfers, saving time and reducing wait
Reliable Multi-WAN Connectivity
up to 3 WAN ports for uninterrupted connectivity and optimized traffic
Built-in Fiber Port for Long-distance
Offers degradation-free signals for long-distance data transmission
Comprehensive and Robust VPN
Powerful VPN ensures secure access for business offices and remote workers
Access Under Protection
Firewall protection keeps your network safe from unauthorized access and cyber threats
One-stop APs Management
Effortlessly monitor and control smart access points with the built-in management platform
Intelligent Network Optimization
Prioritizing critical applications, balances traffic to avoid congestion, and efficiently use the resources
User-friendly Web UI Platform
Intuitive web UI streamlines management, enhances operational efficiency and minimizes errors

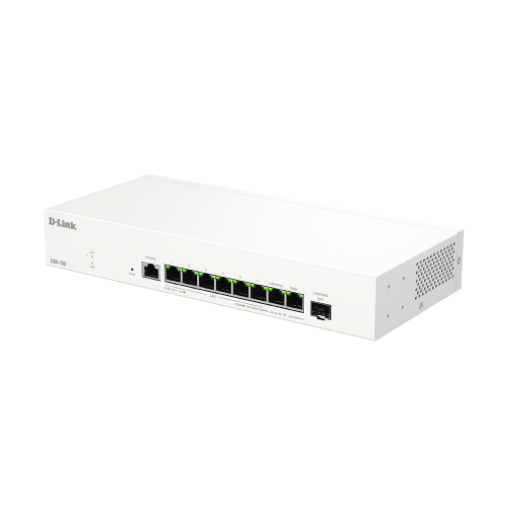

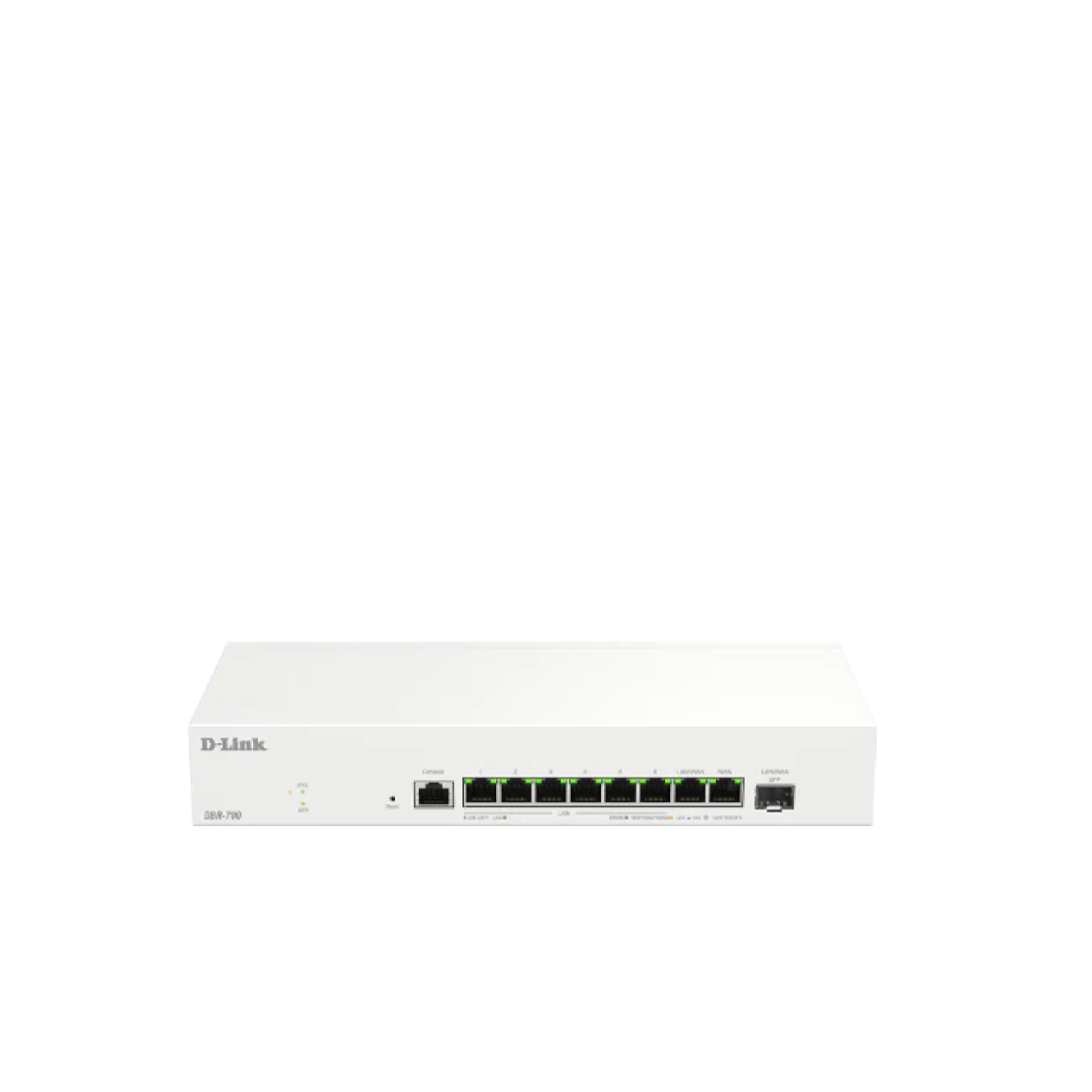

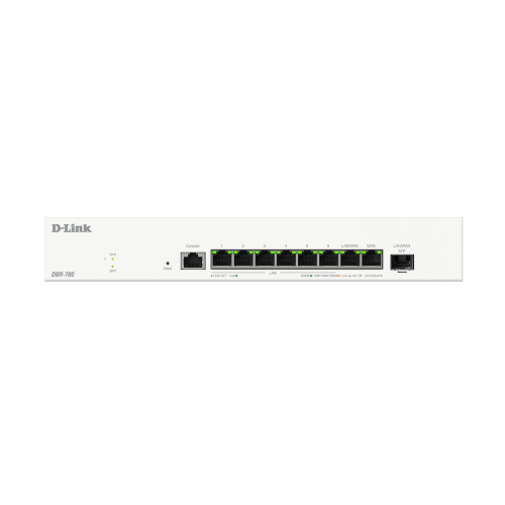

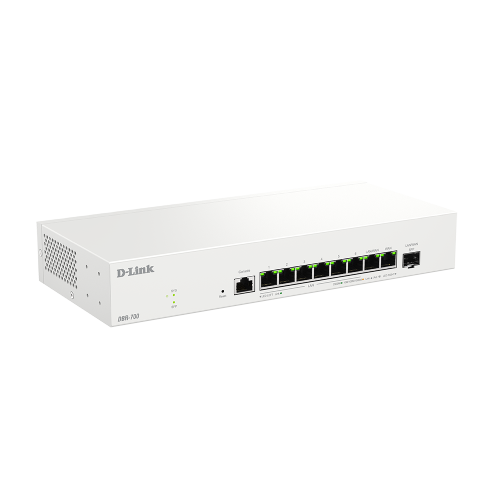

Powerful Business VPN Router for Small Office Connectivity
The DBR-700 is a high-performance business router featuring 2.5G interfaces, including SFP ports, providing flexible and stable wired connectivity, particularly for long-distance transmission. Multi-WAN functionality ensures uninterrupted network services by automatically switching to a backup WAN connection and load-sharing internet access. With a powerful firewall and supports IPsec VPN tunnels, your remote access is always secured and encrypted. Enhanced AP management simplifies centralized control of multiple access points, making the DBR-700 an excellent choice for businesses seeking reliable, secure, and high-speed networking.
2.5G Connectivity Maximize Efficiency and Growth with a Powerful Interface
The DBR-700 features a 2.5G interface, providing higher bandwidth to support faster file transfers and lag-free, high-quality 4K/8K video streaming, enhancing daily productivity with more stable and reliable connectivity. The SFP (Small Form-Factor Pluggable) port enables long-distance data transmission, offering greater flexibility and scalability in network design. With the fiber port, businesses can easily scale their network without zone limitations.

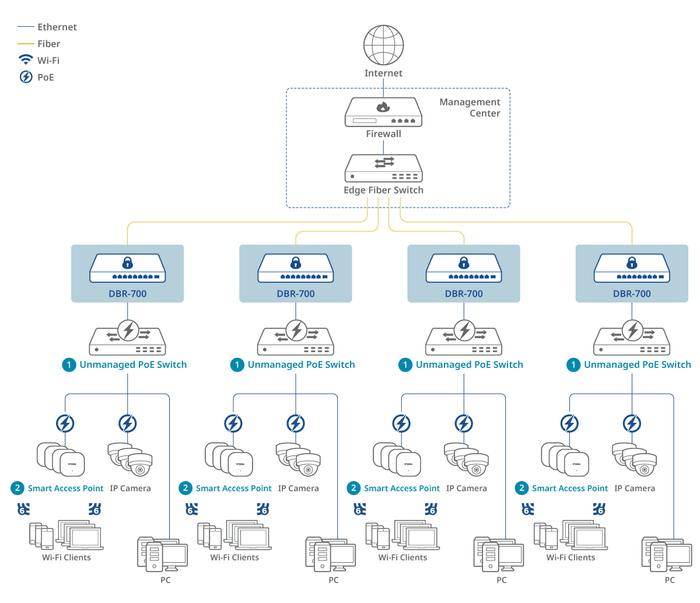

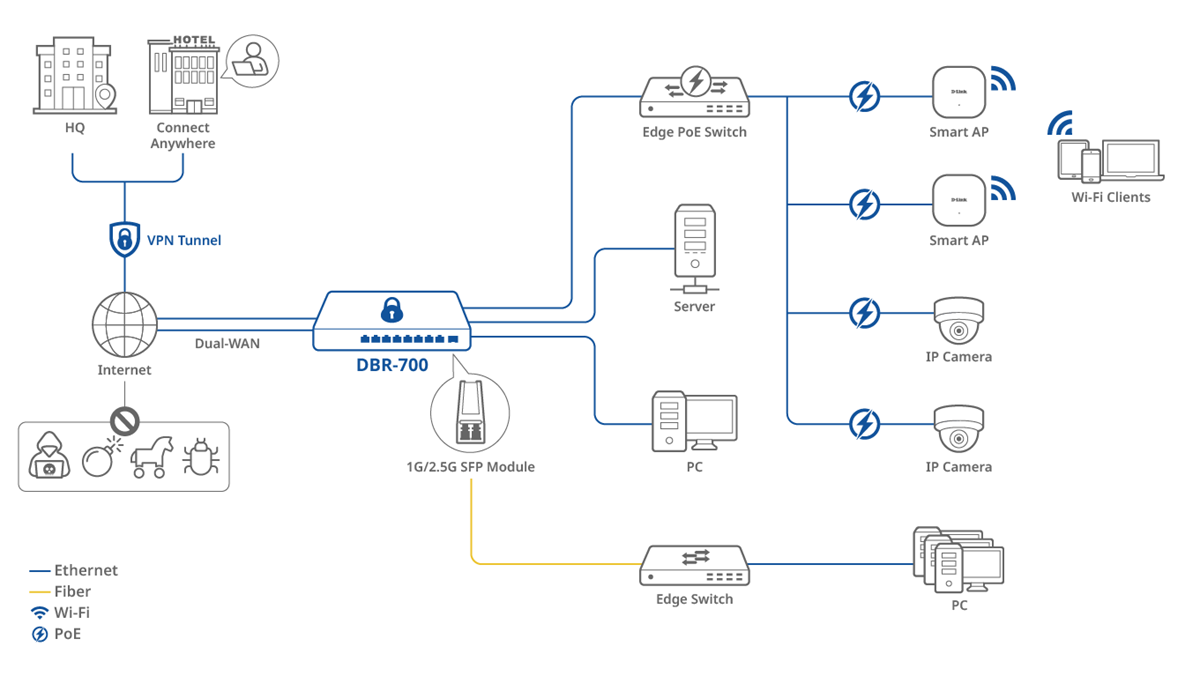

Connection Diagram
Discover the DBR-700 business router's capabilities through our detailed topology diagram.
The DBR-700 offers seamless connectivity through its 2.5G high-density ports, while the SFP port enables long-range and flexible network expansion. Multiple WANs provide reliable and stable network services, efficiently balancing traffic. The VPN tunnel allows users to join the office network at all times and ensures internet restrictions enhance productivity. Additionally, the built-in AP management system provides centralized control over wireless client status and authentication.DBR-700 is the perfect for businesses looking to optimize network performance and productivity.

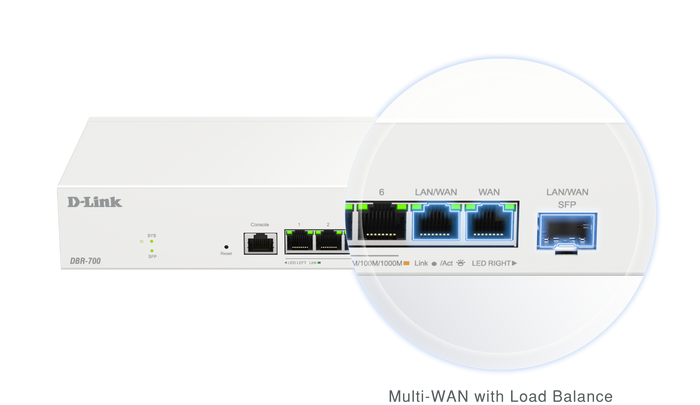

Multi-WAN Always Online, Always Reliable
In addition to a WAN/LAN port that can be configured as a secondary WAN, the SFP port can also serve as a 3rd WAN connection. Multi-WAN functionality enhances network reliability and ensures consistent service.
With up to 3 WAN ports, the DBR-700 keeps your business always connected. Load balancing distributes network traffic across multiple WAN connections, preventing any single connection from being overwhelmed, averaging overall internet usage, and ensuring continuity with backup connections in case of failures.

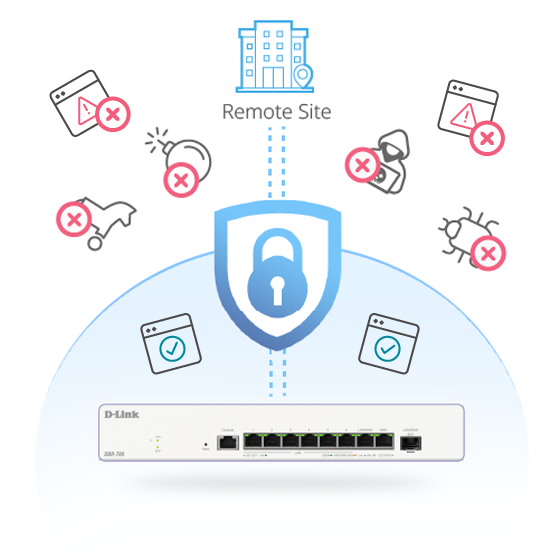

Robust Security Always Secure Your Network and Access
Comprehensive built-in advanced security features, such as a firewall, IPS and URL filtering, ensure that the internal network is securely protected. Enhanced VPN interoperability and strong encryption improve secure connection establishment with any device, deeply protecting data from unauthorized access and maintaining privacy across all network interactions.

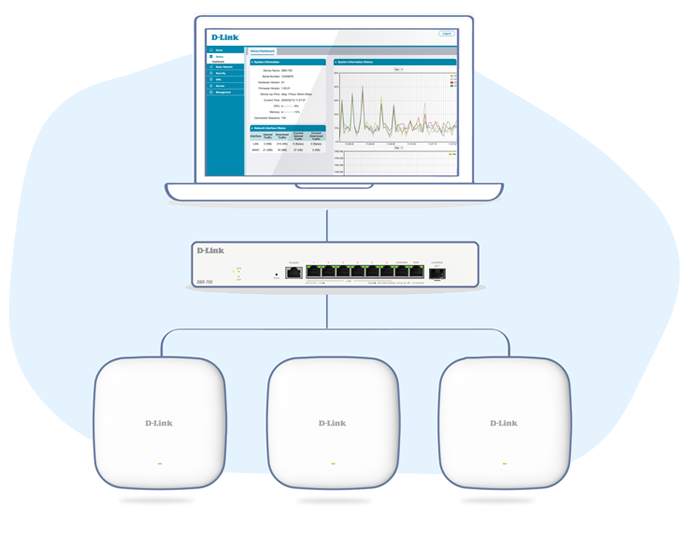

One-Stop APs Management
Through an intuitive web UI, the DBR-700 centrally monitors the entire network status and easily manages the configuration of advanced features. Integrated wireless management supports up to 15 Smart AP(DBR-X3000-AP) devices, simplifying administrative tasks such as radio settings, client monitoring, and access control. Hassle-free management and real-time insights into network activity help small business owners enhance overall operational efficiency.

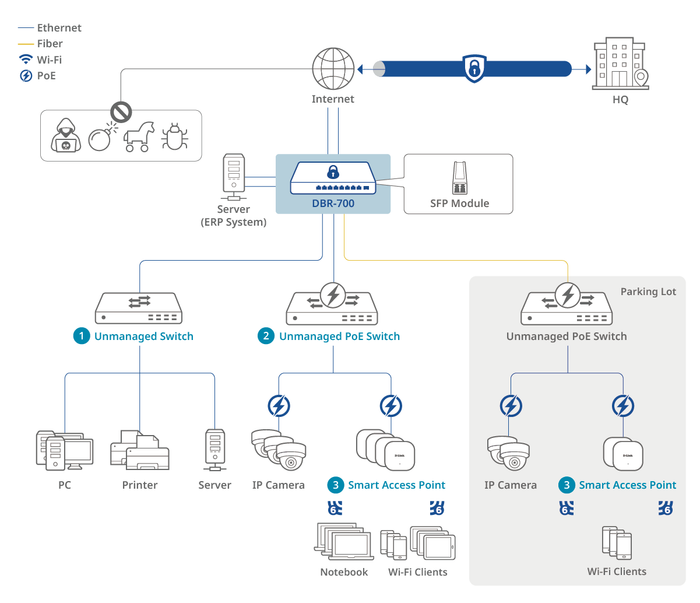

Supermarket (Business)
User benefits :
2.5G high-speed connectivity for efficient operations
Multi-WAN with load balancing for uninterrupted service
Create a secure network environment with robust protection
Deploy long-distance transmission networks without extra devices
Easily manage and configure access points for the wireless service
Click Through, Local DB when managed by DBR-700 /DBR-600-P
General
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
Physical
Dimensions
120 x 280 x 45 mm
Temperature
Operating: 0 to 40 °C (32 to 104 °F)
Storage: -20 to 70 °C (-4 to 158 °F)
Humidity
Operating: 10% to 90% non-condensing
Storage: 0% to 95% non-condensing
