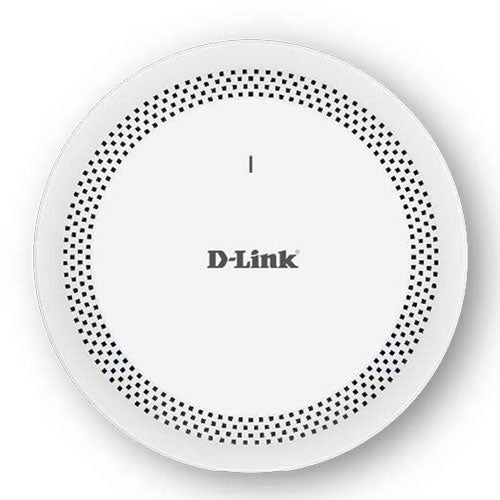

DLA-X301 | D-Lite Cloud-Managed AX3000 Access Point
DLA-X301 | D-Lite Cloud-Managed AX3000 Access Point

DLA-X301 | D-Lite Cloud-Managed AX3000 Access Point

RM0.00
DLA-X301
  • Cloud-Based Management
  • Zero-Touch Deployment
  • Intuitive User Interface
  • Unlimited Scalability
  • Intelligent Band Steering
  • Bandwidth Optimization
  • Automatic Channel Management
  • Flexible Authentication with Customizable Captive Portal, 802.1X, and RADIUS Server
  • Social Login for Guest Wi-Fi Access
  • End-to-End Encryption
  • Event and Change Logs
  • Over-the-Air (OTA) Firmware Upgrades
  • Real-Time Traffic Reporting and Analytics*
  • Automated Monitoring and Alerts
  • Multi-Tenant Management with Role-Based Administration
  • Interactive Network Map View
  • AI-Powered Diagnostics
  • Supports 500+ Concurrent Wi-Fi Client Devices

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80
Downloads Datasheet

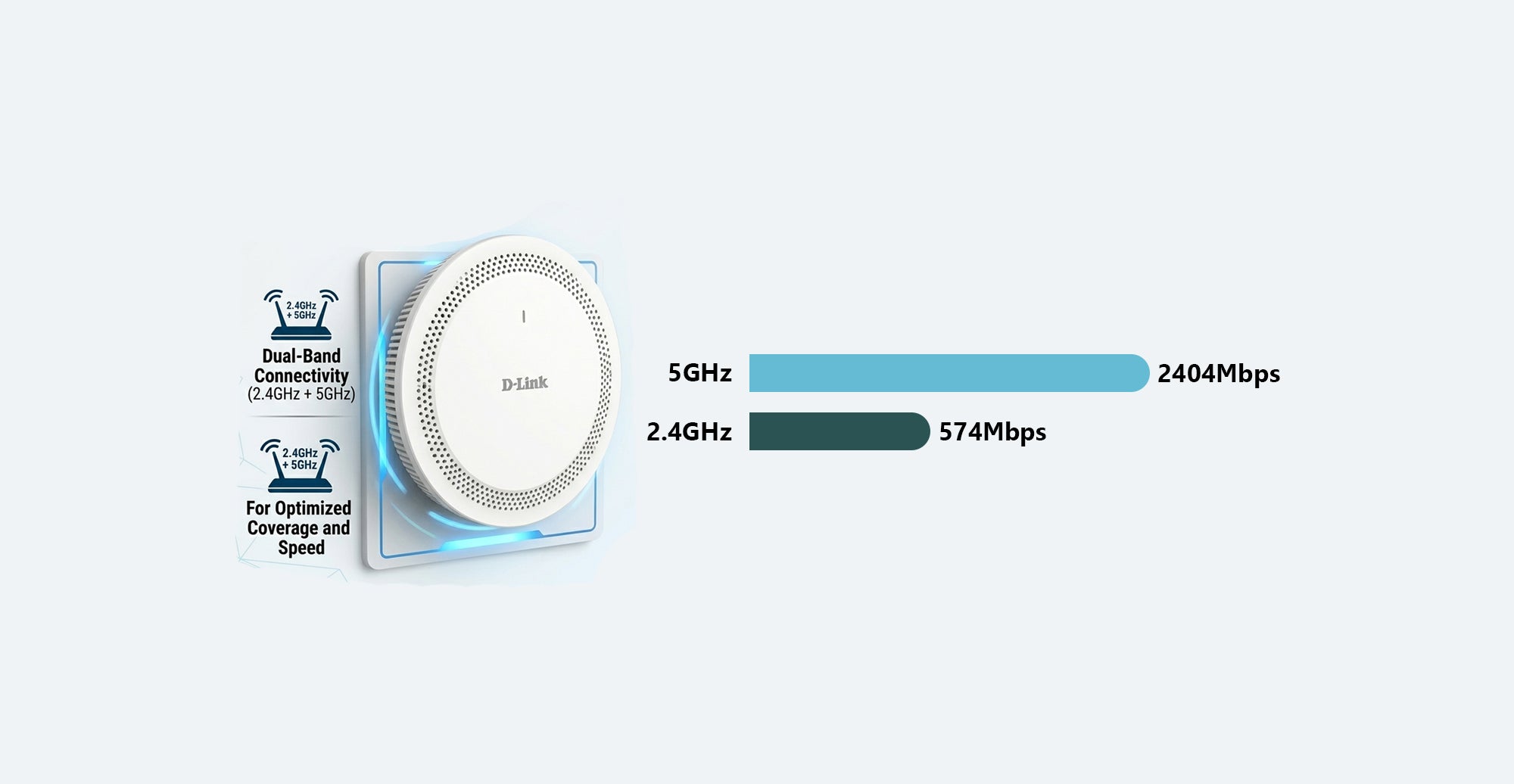

AX3000 speeds up to 3 Gbps

Enjoy high-speed Wi-Fi 6 performance with combined dual-band speeds of up to 3 Gbps. Designed for busy environments, it delivers fast, reliable connectivity for multiple devices with improved efficiency and lower latency.

Wi-Fi 6 (802.11ax) dual-band connectivity

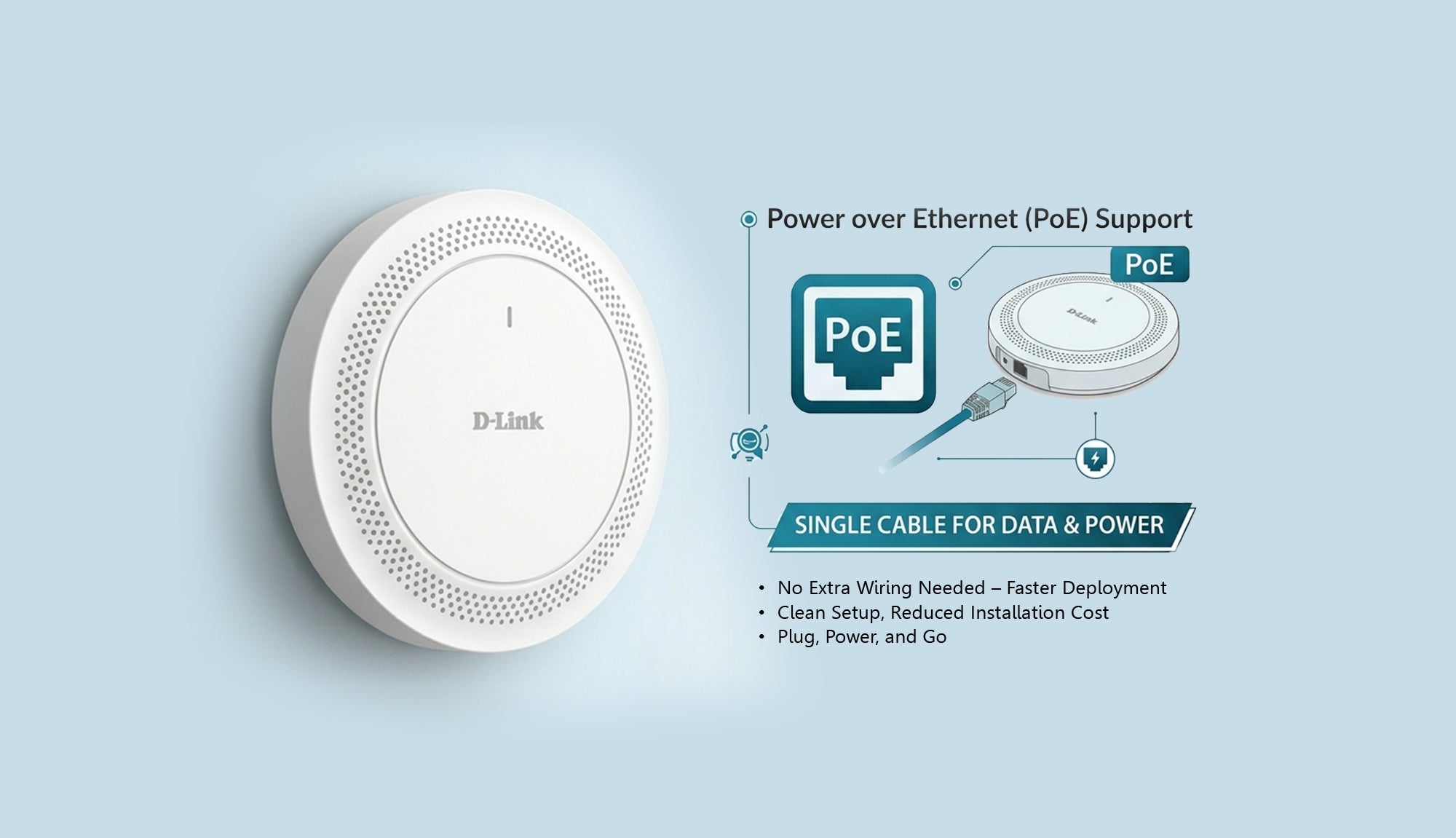

Simplify Installation with PoE

One Cable. Zero Hassle.

One Seamless Network

Everything Connects

Advanced Enterprise Security

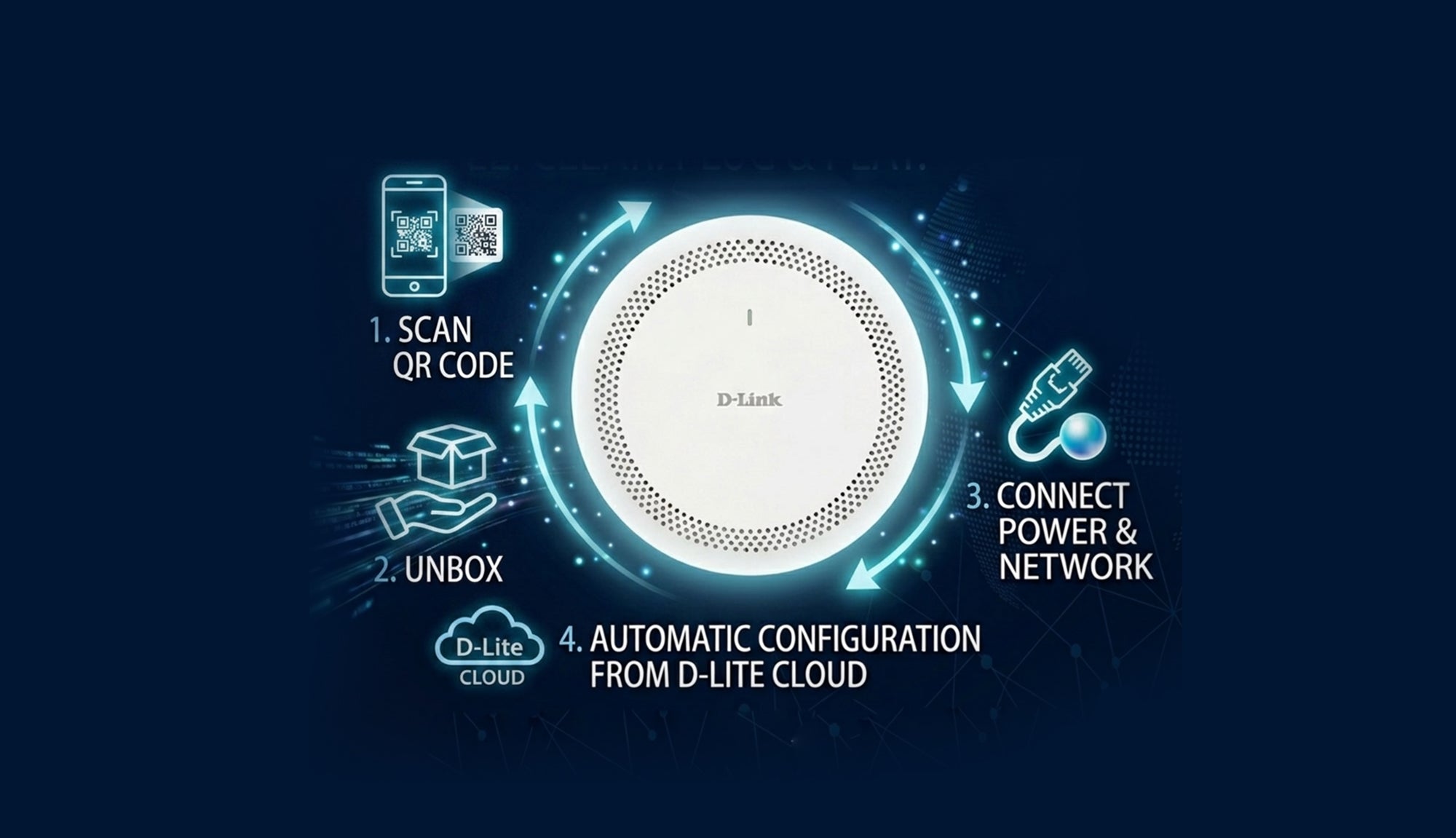

Zero-Touch Deployment

Captive Portal & Wi-Fi Heatmap

Smarter Guest Access & Intelligent Wi-Fi Planning

Cloud-Managed Wi-Fi & Switch Network Topology

Cloud-based centralized management via D-Lite Cloud

With Zero-Touch Provisioning, devices can be shipped directly to each site and
automatically configured when connected。


*D-Link provides its cloud-managed Wi-Fi services on a complimentary basis. D-Link expressly reserves the right, at its sole discretion, to modify, amend, suspend,or terminate the terms and conditions, feature availability, or fee structure of this service at any time without prior notice. Your continued utilization of the servicefollowing any such alterations shall constitute your explicit acknowledgment and acceptance of the revised Terms and Conditions.

Tech Specifications

Hardware
Device Interfaces
  • 1 x 10/100/1000 Mbps Ethernet Port
  • 1 x 10/100/1000 Mbps Ethernet PoE Port
  • IEEE 802.11ax Wi-Fi 6
Power Input

• IEEE 802.3at Power over Ethernet (PoE) on LAN 1
• Power adapter: 12 V DC, 1.5 A

Power Consumption

• PoE: <12 W
• Power adapter: <12 W

Maximum Output Power

• 2.4 GHz: 23 dBm
• 5 GHz: 23 dBm

Wireless
Wireless
Antenna
  • Internal omni-directional Wi-Fi antennas
  • - 2 x 3 dBi 2.4GHz
  • - 2 x 3 dBi 5GHz
Standards

• IEEE 802.11a/b/n/g/ac/ax
• IEEE 802.3az Energy-E cient Ethernet (EEE)
• IEEE 802.3at Power over Ethernet (PoE)
• IEEE 802.11h(DFS)
• IEEE 802.3i/u/ab|
• IEEE 802.3x Flow Control
• IEEE 802.11e(WMM)
• IEEE 802.11k/v/r

Data Signal Rate

• 2.4 GHz: Up to 574 Mbps
• 5 GHz: Up to 2402 Mbps

Modulation Schemes

• OFDM - BPSK,QPSK, 16-QAM, 64-QAM 256-QAM 1024-QAM
• DSSS - DBPSK, DQPSK, CCK

Maximum SSIDs

• Supports up to 16 SSIDs per device
• - Up to 8 SSIDs per wireless band

General
Security Protocols
  • 192-bit Enterprise encryptio
  • Latest 802.11 128-bit AES with SAE
  • 128-bit Enterprise encryption
  • 802.11 128-bit AES
  • MAC address flltering
  • RADIUS server authentication
  • Captive portal
  • Station isolation
  • Guest isolation
Physical
\Dimension

• 200.6 x 200.6 x 40mm

Weight

• Without Mount: 491g

Operating Temperature

• 0 to 40 °C

Storage Temperature

• -30 to 70 °C

Humidity

• 5% to 95% non-condensing

Mean Time Between Failure (MTBF)

• >400,000 hours

Mounting Options

• Ceiling mount
• Wall mount
• Desktop (horizontal)

Certications

• CE Class B
• FCC Class B
• UL-2043
• IC Class B
