Product Description

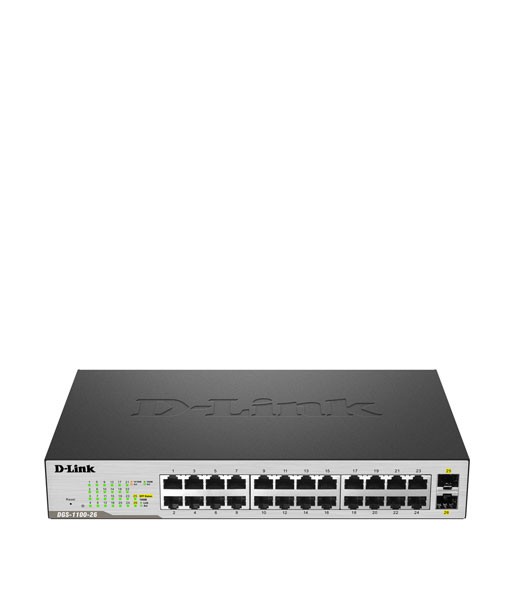

26-Port Layer 2 Lite Smart Managed Gigabit Switch
• 24 Port 10/100/1000 Base-T with 2 Gigabit SFP Ports
• Equipped with 802.3az Energy Efficient Ethernet (EEE) Complaint
• Support IEEE 802.1Q VLAN traffic segregation
• Auto Surveillance VLAN for easy integration with IP-based surveillance systems
• Loopback detection (LBD) and broadcast storm control to avoid network downtime
• Quality of Service (QOS) and bandwidth control to ensure smooth operation
• Cable diagnostics function to help troubleshooting wiring problem
• Support Web-based GUI, Smart Console, Network Assistance Utility”
Description
The DGS-1100 Series is a range of switches designed to meet the requirements of small, medium, and enterprise businesses. Support for multiple PoE standards, high power budgets and 6 kV surge protection (MP/MPP models) make the DGS-1100 Series ideal for IP surveillance deployments. Advanced management features, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to your networking requirements.
D-Link Green/Power Saving Performance
Compliant with IEEE 802.3az Energy Efficient Ethernet, the DGS-1100 Series consume less energy by cutting down on power consumption when port utilization is low. By deploying compatible devices, users can cut operating costs and even cut down on necessary cooling equipment, helping small and medium-sized businesses stay within their budgets. The DGS-1100 Series also features D-Link Green Technology that helps save energy automatically. The switches monitor the link status of every port and significantly reduce power consumption of the interface when there is no link or network traffic detected.
Easy to Deploy
The DGS-1100 Series supports an intuitive client-based utility (SmartConsole Utility or D-Link Network Assistant Utility) and a web-based managementn interface. The client-based utility discovers all D-Link Smart Switches within the same Layer 2 network segment, making the initial setup quick and easy. This allows extensive switch configuration and basic administration of discovered devices, including password changes and firmware upgrades. The web-based interface provides a user-friendly way for network administrators to manage the switch down to the port level. The interface can be accessed from a web browser, allowing the switch to be controlled from any network-connected PC.
Limited Lifetime Warranty
D-Link offers a Limited Lifetime Warranty on the DGS-1100 Series Gigabit Smart Managed Switches to further its commitment to product quality and long-term customer confidence.
Auto Surveillance VLAN and Bandwidth Control
The DGS-1100 Series supports Surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or might have high priority.
Advanced Features
The DGS-1100 Series is equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only. Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
PoE Support
The DGS-1100-08P/24P/10MP/10MPP/26MP/26MPP provide support for Power over Ethernet (PoE), reducing deployment time for IP cameras, VoIP phones, and access points. Dedicated power adapters are no longer required, as the DGS-1100-24P/10MP/26MP comply with IEEE 802.3af and 802.3at PoE standards and provide up to 30 watts per port. The DGS-1100-08P complieswith the 802.3af standard and provides up to 15.4 watts per port, while the DGS-1100-10MPP/26MPP comply with 802.3af, 802.3at, 802.3bt draft and UPoE and can supply up to 75 watts on a selected number of ports.
